Energy systems are changing rapidly. Rising electricity prices, increasing demand for backup power, stronger requirements for renewable integration, and the expansion of electric mobility are encouraging homes, businesses, and industrial facilities to manage energy more intelligently. Solar generation is no longer limited to supplying daytime loads. With a suitable hybrid inverter, solar power can be stored, shifted to more valuable time periods, used during grid interruptions, combined with a diesel generator, or added to an existing photovoltaic installation without replacing the complete system.

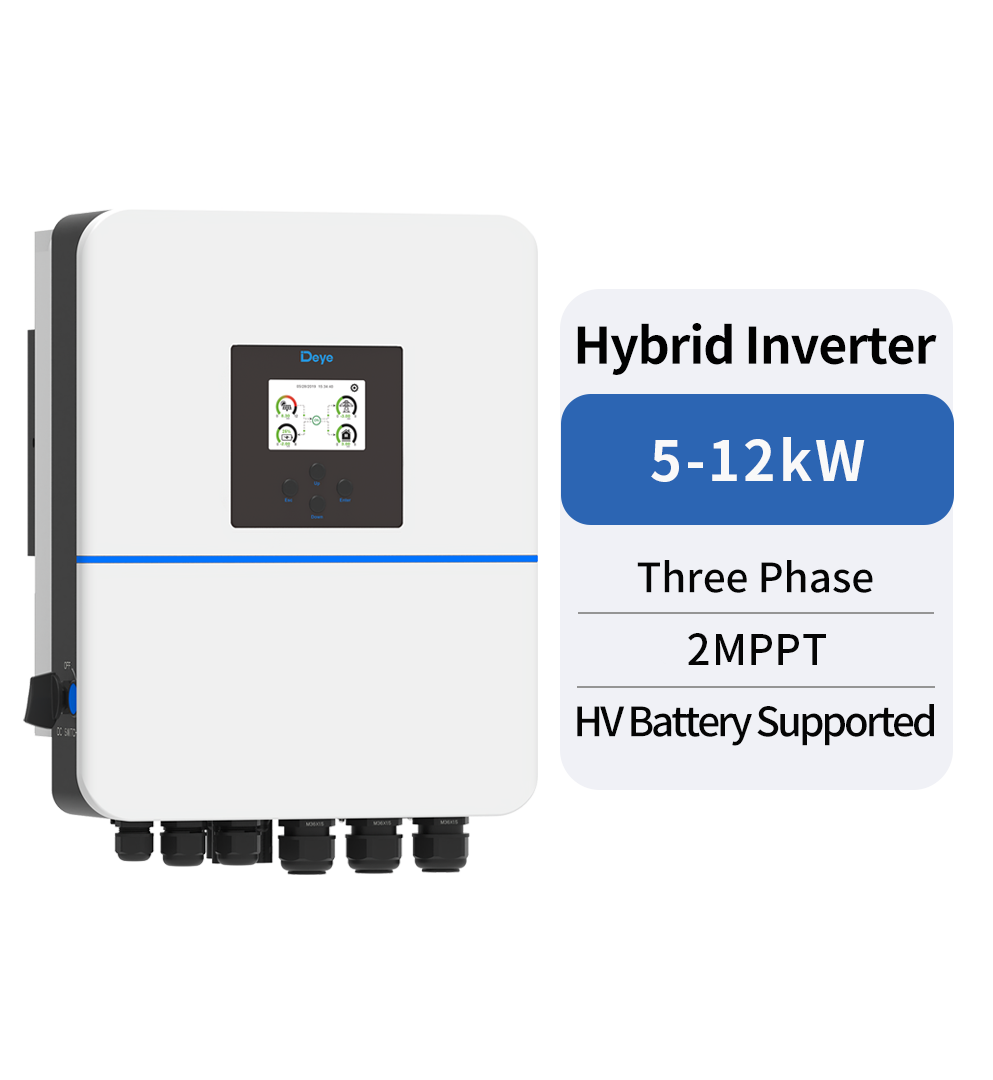

The SUN-5/6/8/10/12K-SG01HP3-EU-DM2 series is designed for this type of energy environment. It is a three-phase high-voltage hybrid inverter family with five power classes: 5 kW, 6 kW, 8 kW, 10 kW, and 12 kW. The platform combines photovoltaic conversion, battery charging and discharging, grid interaction, backup operation, generator integration, and intelligent monitoring in one product family. Its high-voltage battery architecture, dual maximum power point tracking, three-phase output, parallel operation capability, and support for unbalanced loads make it suitable for residential, small commercial, and light industrial applications.

Rather than functioning only as a conventional solar inverter, this product is intended to serve as an energy management hub. It can direct energy between PV modules, batteries, household or commercial loads, the public grid, and an optional generator. This flexibility helps system designers create installations that are more resilient, easier to expand, and better adapted to different electricity tariffs and load profiles.

Product Overview and Application Positioning

The inverter family belongs to the three-phase high-voltage hybrid inverter category. It is available in the following rated power versions: SUN-5K-SG01HP3-EU-DM2, SUN-6K-SG01HP3-EU-DM2, SUN-8K-SG01HP3-EU-DM2, SUN-10K-SG01HP3-EU-DM2, and SUN-12K-SG01HP3-EU-DM2. Although the models have different power ratings, they share the same core design philosophy and many of the same electrical and protection features.

The range is intended for installations where a three-phase supply is required. Typical applications include larger homes with three-phase appliances, farms, workshops, small offices, retail facilities, hospitality properties, telecommunications locations, and commercial buildings seeking to reduce grid dependence. The inverter can also be applied in retrofit projects where an existing PV system needs battery storage and backup functionality.

A central feature is the ability to AC-couple the system to an existing solar installation. This means that an older PV system does not necessarily need to be removed and replaced when the owner later decides to add batteries. The hybrid inverter can be integrated on the AC side, subject to system design, protection, and local regulations. This capability can reduce project disruption and preserve the value of installed PV equipment.

The product also supports up to ten units operating in parallel for on-grid and off-grid operation. Parallel operation allows installers to increase total system capacity as energy needs grow. It can be useful in projects where the initial installation is modest but future expansion is expected, or where several inverters are needed to serve a larger three-phase load profile.

Another important capability is support for multiple batteries in parallel. Battery configuration must always follow the battery manufacturer’s voltage, current, communication, and safety requirements, but the inverter platform is designed to support scalable storage architectures. This gives system integrators greater freedom when selecting appropriate battery capacity for daily energy shifting or backup duration.

High-Voltage Battery Architecture

The inverter accepts a lithium-ion battery voltage range of 160 to 700 V. High-voltage storage can provide several technical advantages compared with low-voltage battery systems. For a given power level, a higher battery voltage means a lower operating current. Lower current can reduce conductor losses, support more compact cabling, and improve the efficiency of power conversion and system distribution.

The maximum charging and discharging current is 37 A. This rating enables substantial power transfer while keeping the battery-side current within a controlled range. The inverter uses a charging strategy that adapts to the battery management system. This self-adaptive approach allows the inverter and the compatible battery BMS to coordinate charging limits, state-of-charge information, protection thresholds, and operating status.

Battery communication is particularly important in high-voltage energy storage systems. A battery is not simply a passive energy source; it has its own monitoring and protection functions. The BMS may adjust allowable current according to temperature, cell voltage, state of charge, balancing conditions, or fault status. By supporting communication with the BMS, the inverter can respond dynamically rather than relying only on fixed charging parameters.

The product has one battery input and is intended to work with lithium-ion storage. Project engineers should confirm battery compatibility, communication protocols, approved battery lists, cable requirements, isolation arrangements, and installation rules before commissioning. Correct coordination between the inverter and battery is essential for long service life and safe operation.

High-voltage storage also helps support a clean and efficient system layout. Because current is lower than it would be for an equivalent low-voltage system, the battery connection can be designed with reduced voltage drop and potentially smaller conductors, subject to applicable electrical standards. This is especially helpful when the battery cabinet is installed at a practical distance from the inverter.

Solar Input Capability and Dual MPPT Design

The series includes two maximum power point trackers and two PV string inputs arranged as one string per tracker. Dual MPPT architecture allows two PV arrays with different orientations, tilt angles, shading conditions, or electrical characteristics to operate more effectively. Instead of forcing all modules to work at the same operating point, each tracker can independently optimize the power available from its connected string.

The maximum PV input voltage is 1,000 V, while the start-up voltage is 180 V. The MPPT operating range is 150 to 850 V, with a rated PV input voltage of 600 V. These values provide designers with a broad operating window for configuring string lengths and selecting modules. String design must still account for the lowest expected temperature, maximum open-circuit voltage, module characteristics, and local code requirements.

The maximum operating PV input current is 18 A plus 18 A, and the maximum input short-circuit current is 27 A plus 27 A. These current ratings are relevant when selecting modern high-power PV modules. As module current characteristics continue to evolve, installers must compare the module’s operating current and short-circuit current with the inverter’s limits rather than relying only on nominal module wattage.

Maximum PV access power varies by model. The 5 kW version supports up to 10 kW of maximum PV access power, while the 6 kW, 8 kW, 10 kW, and 12 kW versions support 12 kW, 16 kW, 20 kW, and 24 kW respectively. The listed maximum PV input power values are 8 kW, 9.6 kW, 12.8 kW, 16 kW, and 19.2 kW respectively.

Model	Rated AC Power	Maximum PV Access Power	Maximum PV Input Power	Battery Voltage Range
SUN-5K-SG01HP3-EU-DM2	5 kW	10 kW	8 kW	160–700 V
SUN-6K-SG01HP3-EU-DM2	6 kW	12 kW	9.6 kW	160–700 V
SUN-8K-SG01HP3-EU-DM2	8 kW	16 kW	12.8 kW	160–700 V
SUN-10K-SG01HP3-EU-DM2	10 kW	20 kW	16 kW	160–700 V
SUN-12K-SG01HP3-EU-DM2	12 kW	24 kW	19.2 kW	160–700 V

The high DC-to-AC sizing potential is valuable in locations with limited sunlight, seasonal variation, morning and afternoon shading, or a preference for maximizing annual solar yield. Oversizing the PV array can help the inverter reach its rated output for more hours of the day. However, the final design must comply with the manufacturer’s electrical limits and local regulations.

SUN-5/6/8/10/12K-SG01HP3-EU-DM2

Three-Phase Grid and Load Management

The inverter is designed for 220/380 V or 230/400 V three-phase systems with three lines, neutral, and protective earth. It supports grid frequencies of 50 Hz or 60 Hz within the specified operating ranges. This makes the platform suitable for many European and international electrical environments, provided that the applicable grid connection requirements are met.

The rated AC input and output active power corresponds to the model rating from 5 kW to 12 kW. Maximum AC apparent power ranges from 5.5 kVA on the 5 kW model to 13.2 kVA on the 12 kW model. The rated input and output current values are separately specified for each model, allowing designers to determine appropriate upstream and downstream protective devices.

The inverter provides a maximum continuous AC passthrough capability of 35 A from the grid to the load. This function can be useful when the connected loads temporarily exceed the inverter’s own conversion capacity or when the system is operating in a grid-connected mode. As with all electrical installations, the system designer must coordinate passthrough current with the service entrance, distribution board, breakers, cabling, and local installation requirements.

One of the most notable advantages of the product is its ability to provide 100% unbalanced output. In a three-phase building, loads are not always distributed evenly between phases. A kitchen, workshop, heat pump, office, or agricultural motor may create an uneven demand profile. An inverter that can accommodate unbalanced loads can use available generation more effectively and reduce the need for manual phase balancing.

Unbalanced output support is also valuable in backup operation. During an outage, essential loads may not be evenly distributed across the three phases. The ability to deliver unbalanced power improves the practicality of backup systems and can make it easier to maintain important single-phase equipment while still supplying a three-phase installation.

The inverter supports a power factor adjustment range from 0.8 leading to 0.8 lagging. This allows the system to respond to reactive power requirements where permitted by the grid operator and local interconnection rules. Power factor control may be relevant for commercial users, facilities with inductive equipment, or regions with specific grid support requirements.

Backup Performance and Off-Grid Operation

Energy storage provides value not only by reducing grid electricity consumption but also by increasing resilience. The hybrid inverter can operate in off-grid mode and is specified to deliver peak power of 1.5 times the rated power for ten seconds. This short-duration overload capability can help start or support certain loads with high inrush or temporary demand, such as pumps, compressors, and selected motor-driven equipment.

Peak power performance depends on battery capability, ambient conditions, state of charge, wiring, protection settings, and load characteristics. System designers should not assume that every appliance can be started simultaneously. High-inrush devices should be evaluated individually, and critical loads should be placed on a properly designed backup distribution board.

The 35 A grid-to-load passthrough rating can also support practical energy management during normal grid operation. When the grid is available, the system can coordinate PV generation, battery charging, grid supply, and load demand. During an outage, the inverter can disconnect from the grid and create a stable local supply for supported loads, subject to the installation design and the available battery energy.

Backup systems are most effective when loads are prioritized. Essential lighting, communications, refrigeration, security equipment, networking devices, pumps, and selected medical or business equipment may be placed on the backup output. Large electric heating loads, electric vehicle chargers, and high-power motors may need load management or separate operating rules.

The product’s three-phase architecture is particularly useful when backup power must serve more than a simple single-phase circuit. However, installers must confirm local requirements for islanding, neutral switching, earthing, generator coordination, and emergency power distribution. Correct commissioning is just as important as the inverter’s hardware capability.

Six Time Periods for Intelligent Energy Scheduling

The inverter supports six time periods for battery charging and discharging. This feature gives users a practical way to align battery operation with electricity tariffs, solar production, and expected consumption. For example, a system may charge the battery from excess solar generation during the day, discharge during an evening peak period, and reserve a defined state of charge for backup protection.

Time-of-use energy management can provide financial benefits where electricity prices vary during the day. The battery can be charged when grid electricity is less expensive, then discharged when energy costs are higher. In areas with export limitations, the system can also prioritize self-consumption by storing surplus solar instead of sending it to the grid.

Six programmable time periods are useful for sites with complex daily schedules. A home may have morning and evening consumption peaks. A business may operate during standard working hours and require backup after closing. A farm may have irrigation, refrigeration, or processing loads at different times. Multiple operating windows allow the system to be customized more precisely than a simple charge-at-night or discharge-at-day setting.

Scheduling must be coordinated with battery operating limits. Excessive cycling, unsuitable depth of discharge, or charging outside the battery’s permitted temperature range may reduce battery life. The self-adaptive charging strategy and BMS communication help maintain safe operating conditions, but the installer or energy manager should still define schedules that reflect the battery manufacturer’s recommendations.

AC Coupling and Retrofit Advantages

Many existing solar systems were installed before battery storage became economically attractive. Replacing a functioning PV inverter can be expensive and disruptive. AC coupling provides an alternative path. The hybrid inverter can be installed alongside an existing solar system, allowing the property owner to add storage and backup functions without necessarily changing every PV component.

This retrofit capability can lower installation complexity and shorten project downtime. It may also preserve existing module strings, mounting structures, monitoring equipment, and grid connection arrangements. The final design must account for the behavior of the existing inverter during backup operation, anti-islanding requirements, export control, frequency coordination, and the maximum power that can be accepted by the AC-coupled system.

AC coupling is particularly attractive for customers who already have a relatively new PV installation but now need greater self-consumption or resilience. It is also helpful when the original PV inverter is located in a different area from the proposed battery system. A qualified installer can evaluate cable routes, protection requirements, communication options, and the interaction between the old and new equipment.

Compared with a complete system replacement, a well-designed retrofit can offer a more gradual investment path. The property owner can add the battery first and expand the system later, subject to inverter capacity, battery compatibility, and local regulations. This modular approach supports different budgets and changing energy requirements.

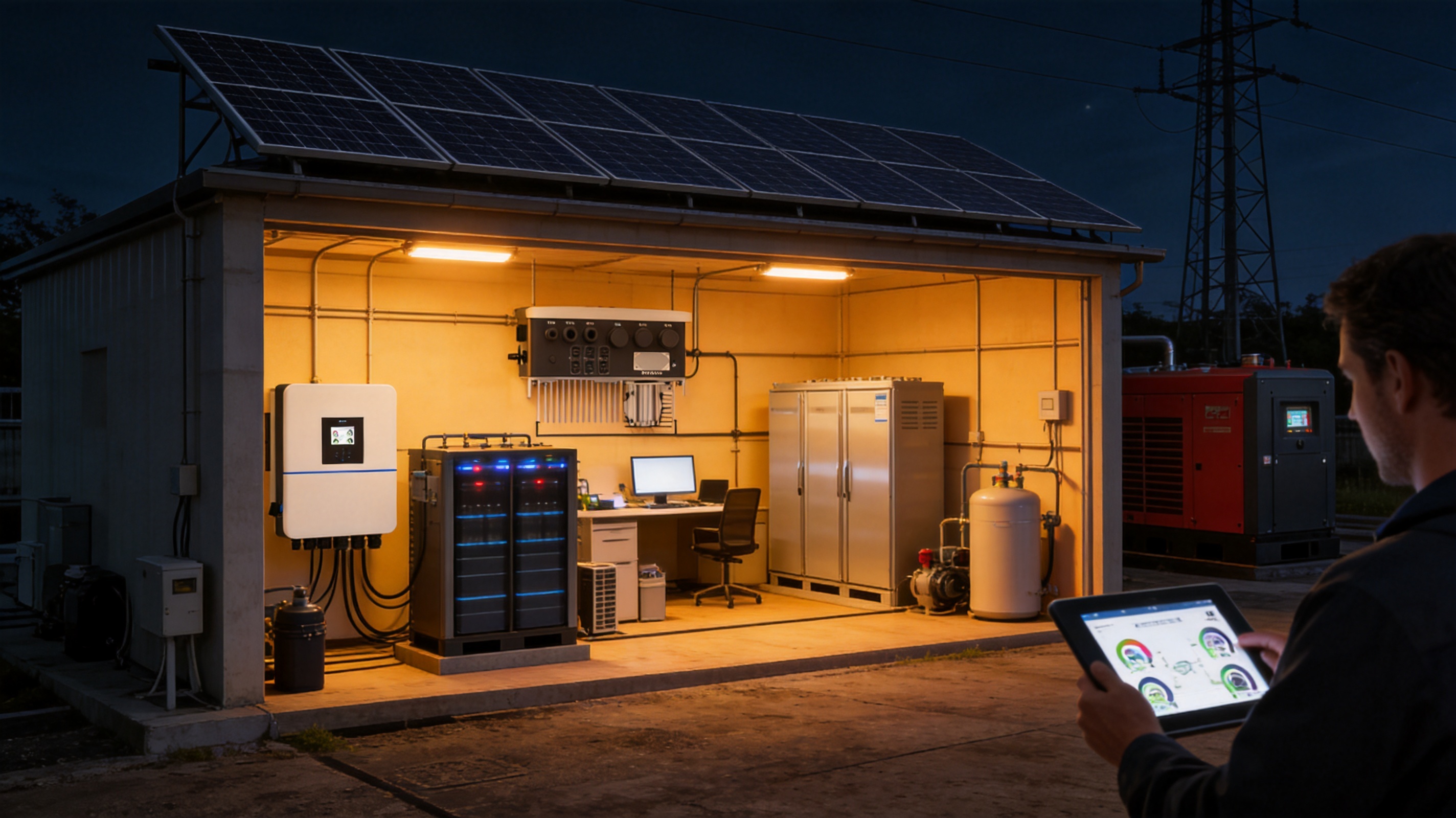

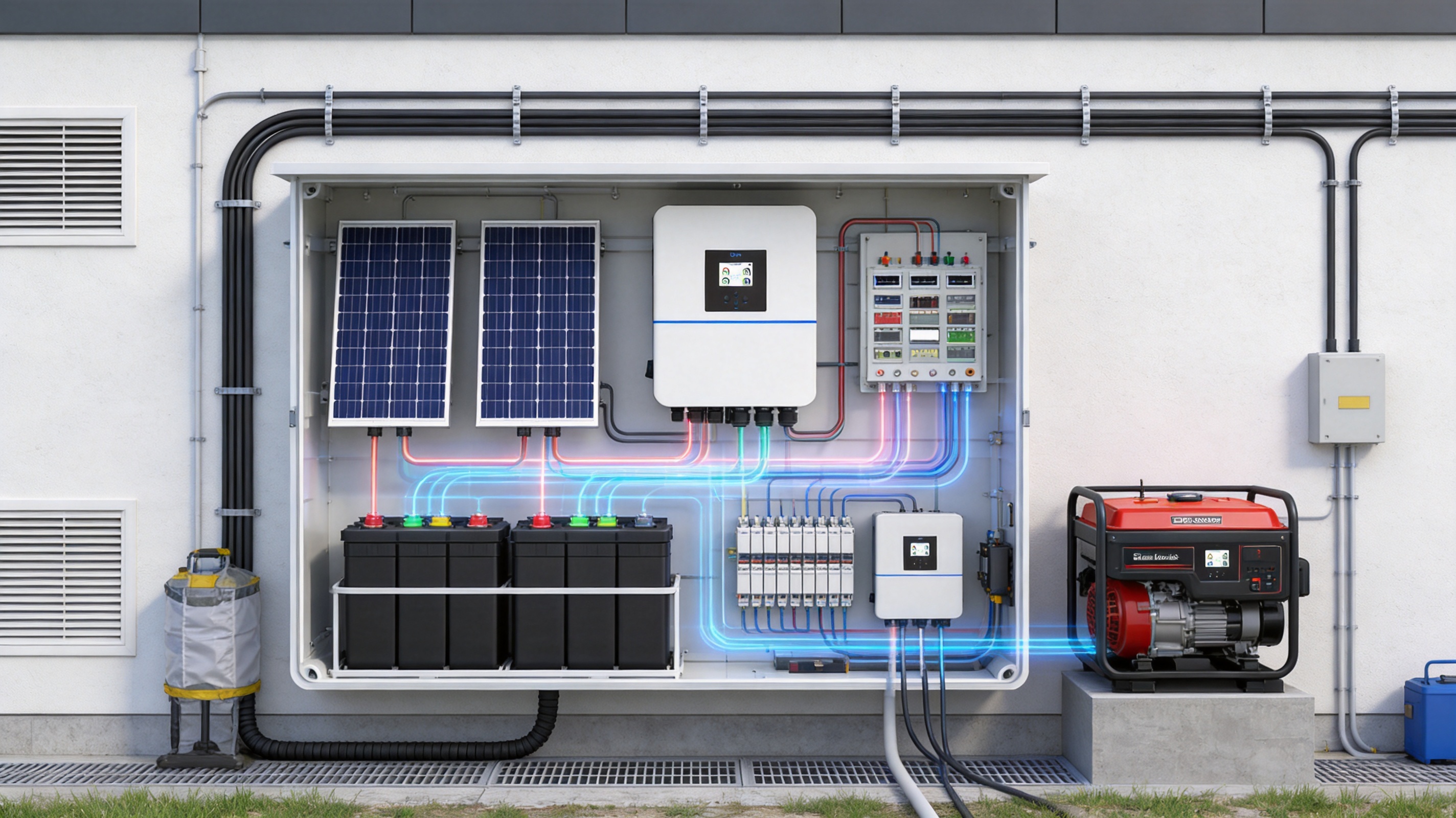

Diesel Generator Integration

The inverter supports storing energy from a diesel generator. This feature extends the system’s usefulness in locations where grid power is unreliable, absent, or expensive. Instead of operating a generator continuously to follow every load fluctuation, the generator can be used as a source for battery charging and the battery can then provide energy during lower-load periods.

Generator-assisted energy storage can reduce fuel consumption, operating hours, and maintenance demands when the system is correctly configured. The generator may start when the battery state of charge falls below a defined threshold, when demand exceeds the available renewable and battery power, or when a prolonged outage requires additional energy.

The exact integration method depends on generator specifications, automatic start capability, voltage and frequency stability, grounding, neutral arrangement, and the requirements of the local electrical authority. The generator must be compatible with the inverter’s input characteristics, and installers must establish safe changeover and protection procedures.

This capability can be valuable in remote homes, agricultural facilities, construction sites, communications infrastructure, island systems, and small commercial sites where a generator remains an important backup source. Combining PV, batteries, and a generator can create a more efficient hybrid microgrid than relying on generator power alone.

Conversion Efficiency and Electrical Quality

The series has a maximum efficiency of 97.6 percent, a European efficiency of 97.0 percent, and MPPT efficiency above 99 percent. Maximum efficiency describes the best-case conversion point, while European efficiency provides a weighted indicator intended to represent performance across a range of operating conditions. High efficiency helps reduce conversion losses and improves the amount of solar energy available to the loads or battery.

Efficiency is particularly important in systems that repeatedly move energy through several stages. Solar power may be converted from DC to AC, stored through a battery charger, converted back to DC, and then delivered as AC to the load. Every conversion creates losses. A high-efficiency inverter can help improve the total round-trip performance of the system and reduce unnecessary heat generation.

The total current harmonic distortion is specified at less than 3 percent at nominal power. Low harmonic distortion supports cleaner power quality and can reduce the impact of inverter operation on connected equipment. The inverter also specifies DC injection current below 0.5 percent of nominal current, supporting grid connection requirements where DC current limits apply.

Power quality depends on the complete system, including the grid, loads, cable design, generator behavior, and other power electronic devices. Nevertheless, the inverter’s electrical specifications demonstrate that it is designed for demanding three-phase applications rather than basic single-purpose solar conversion.

Protection and Safety Functions

Safety is a fundamental consideration in a hybrid system because the inverter may be connected simultaneously to PV arrays, batteries, the public grid, backup loads, and a generator. The product integrates multiple protective functions to monitor these energy paths and respond to abnormal conditions.

Integrated protection features include DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, anti-islanding protection, a DC switch, insulation impedance detection, and residual current detection. Arc fault circuit interrupter protection is available as an option.

DC reverse polarity protection helps reduce the risk of damage if PV conductors are connected incorrectly. AC overcurrent and short-circuit protection help protect the output circuit and connected equipment. Thermal protection monitors operating temperature and can reduce output or shut down the system when necessary.

Anti-islanding protection is essential for grid-connected equipment. If the public grid fails, the inverter must stop feeding power into the grid or isolate the backup system according to applicable standards. This protects utility personnel and helps ensure that the local energy system transitions safely into backup operation.

Insulation impedance detection and residual current detection provide additional monitoring of possible leakage or insulation problems. These functions are important in systems exposed to outdoor conditions, temperature changes, moisture, and long cable runs. The inverter also uses Type II surge protection on both the DC and AC sides, helping protect against transient overvoltage events when correctly coordinated with the site’s broader lightning and surge protection design.

Protection features do not replace proper installation. PV strings, battery cables, AC feeders, earth connections, disconnects, surge protection devices, and distribution equipment must be selected and installed by qualified professionals. Local electrical codes, fire safety rules, battery placement requirements, and grid interconnection procedures must be followed.

Monitoring, Communication, and User Control

The inverter includes an LCD and LED display for local status information. Local indicators can help installers and operators identify operating modes, warnings, and fault conditions without immediately connecting a separate device. A front-panel display is especially useful during commissioning and maintenance.

Communication interfaces include RS485, RS232, and CAN. These interfaces support communication with batteries, meters, control equipment, and external monitoring systems, depending on the final configuration. CAN communication is commonly used for battery BMS coordination, while RS485 may support meters or other system components.

Optional monitoring modes include GPRS, Wi-Fi, Bluetooth, 4G, and LAN. The range of communication options allows system designers to select a connection method based on site conditions. A home may use Wi-Fi, a remote agricultural facility may require cellular communication, and a commercial building may prefer a wired LAN connection.

Monitoring can provide information about PV generation, battery state of charge, grid import and export, load consumption, operating mode, and fault status. Historical data can help owners understand energy behavior and verify whether scheduled charging and discharging are producing the expected results.

For installers and service teams, remote monitoring can reduce unnecessary site visits. A technician may be able to review alarms, operating records, and basic system status before visiting the site. This can improve response time and help identify whether an issue is related to the inverter, battery, grid, communications, or connected loads.

Thermal Management, Enclosure, and Installation Durability

The product has an operating temperature range from -40°C to +60°C, with derating above 45°C. This broad range allows deployment in many climates, although installers must consider direct sunlight, ventilation, ambient temperature, and clearance requirements. Derating at elevated temperature is a normal design consideration for power electronics and should be included in system planning for hot environments.

Cooling differs by model configuration. The supplied specifications identify natural cooling and intelligent air cooling within the product family. Natural cooling can reduce moving parts and acoustic output, while intelligent air cooling can provide active heat management when required by higher power operation or thermal conditions.

The listed noise level is no more than 45 dB. This makes the inverter suitable for locations where sound is a consideration, including residential utility areas, offices, and small commercial premises. Noise performance can vary with operating power, fan activity, installation surfaces, and surrounding acoustic conditions.

The enclosure is rated IP65. This indicates protection against dust ingress and water jets under the defined test conditions. The rating supports outdoor installation when the unit is mounted according to the installation manual and protected from unsuitable exposure. IP65 does not mean that the inverter can be submerged or installed without regard to drainage, condensation, corrosive atmospheres, or direct environmental stress.

The cabinet dimensions are 376 by 470 by 244.5 millimeters, excluding connectors and brackets, and the listed weight is 24 kilograms. The relatively compact enclosure helps simplify wall mounting and transportation. However, the complete installation also requires space for battery equipment, cable bending radii, disconnects, overcurrent protection, ventilation, and service access.

The non-isolated inverter topology and OVC II DC and OVC III AC categories should be considered during system design. These ratings influence insulation, surge protection, clearance, and installation requirements. Qualified installers should use the latest technical documentation when preparing drawings and commissioning procedures.

Grid Compliance and International Deployment

The inverter supports a broad range of grid and safety standards. Listed grid regulations include IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, and VDE-AR-N 4105. The listed safety and electromagnetic compatibility standards include IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, and IEC/EN 62109-2.

Compliance with recognized standards is important because grid connection requirements differ between countries and sometimes between utility regions. Requirements may cover voltage and frequency response, anti-islanding behavior, reactive power, fault ride-through, electromagnetic emissions, safety insulation, and documentation.

A broad compliance portfolio gives distributors and installers a stronger starting point when serving multiple markets. It can reduce the need to source different inverter platforms for every country, although final approval remains dependent on the local utility, installation authority, and project conditions.

Standards and certifications may be updated over time. Before placing an order or submitting a grid connection application, project teams should verify that the exact model and firmware version meet the current requirements of the destination market.

Advantages Compared with Conventional Hybrid Inverters

The first competitive advantage is the combination of high-voltage battery support and three-phase operation. Many entry-level hybrid inverters are designed for single-phase applications or lower-voltage battery systems. A three-phase high-voltage platform can be more appropriate for properties with larger loads, three-phase motors, commercial distribution boards, and a need for lower battery-side current.

The second advantage is flexibility across system architectures. The inverter can support direct PV generation, battery storage, grid interaction, backup operation, AC-coupled retrofit projects, generator integration, and parallel expansion. A conventional grid-tied inverter may provide efficient PV conversion but cannot independently manage battery energy or operate as a backup energy hub.

The third advantage is the 100% unbalanced output capability. In real buildings, phase loads are rarely perfectly balanced. An inverter that can respond to uneven phase demand may provide more usable energy and reduce the need for complex load redistribution.

The fourth advantage is the combination of six time-of-use periods and multiple communication choices. These functions allow the system to follow more sophisticated energy strategies, particularly where tariffs, solar production, generator use, and backup reserves must be coordinated.

The fifth advantage is scalability. Support for up to ten units in parallel and multiple batteries in parallel allows the same product family to address a wide range of capacities. Customers may begin with a smaller system and expand when energy consumption grows, provided that the expansion design remains compatible with the equipment and regulations.

The sixth advantage is the balance between protection and installation practicality. Integrated DC and AC protection, surge protection, anti-islanding, residual current detection, insulation monitoring, a DC switch, and thermal protection reduce the number of separate functions that must be implemented externally. External protective devices are still required where applicable, but integrated functions simplify system architecture.

Manufacturing Strength and Engineering Capability

The product is manufactured by Ningbo Deye Inverter Technology Co., Ltd., a technology manufacturing enterprise founded in 2000. The company integrates research and development, product design, production, sales, and service. Its business covers PV inverters, energy storage systems, environmental appliances, and related energy management technologies.

A manufacturer with experience across several power conversion and energy technology fields can develop broader engineering knowledge than a company focused on a single product category. Inverter design requires expertise in power semiconductors, magnetics, control software, thermal management, electromagnetic compatibility, protection systems, mechanical design, communications, and grid standards. Experience across residential, commercial, industrial, and utility applications can help connect these disciplines.

The company’s product portfolio includes string inverters from 1 kW to 136 kW, energy storage inverters from 3 kW to 80 kW, and microinverters from 300 W to 2.2 kW. It also offers residential all-in-one energy storage, commercial and industrial battery cabinets, modular energy storage, PV-battery-storage-EV charging solutions, and utility-scale liquid-cooled energy storage. This broad portfolio supports technology transfer and system-level development across different market segments.

Advanced manufacturing in this sector involves more than assembling an enclosure and installing a circuit board. A reliable inverter requires controlled production processes, traceable components, automated or semi-automated assembly, firmware verification, electrical safety testing, insulation checks, functional testing, thermal validation, communication testing, and final inspection.

Power electronic products must be manufactured with careful control of soldering quality, connector installation, torque values, creepage and clearance, thermal interface materials, cable routing, sealing surfaces, and protective earth connections. Variations in any of these areas can affect efficiency, safety, service life, or electromagnetic performance.

Production testing is especially important for hybrid inverters because several independent energy ports must operate together. A suitable manufacturing process should verify PV input behavior, battery communication, AC conversion, grid synchronization, backup transfer, protection responses, display functions, communication interfaces, and abnormal operating conditions.

Quality management also depends on supply chain control. Capacitors, relays, power modules, sensors, fans, connectors, communication components, and enclosure materials must meet defined specifications. Component traceability can help identify production batches, support field service, and manage corrective actions if a supplier issue is detected.

The company’s global presence, with products sold in more than 140 countries and regions according to the supplied company information, also creates experience with varied grid environments, climate conditions, installation practices, and customer expectations. International deployment can strengthen product feedback loops and encourage continuous refinement of hardware, firmware, documentation, and support processes.

Research and development is another manufacturing strength. A vertically coordinated organization can move more quickly from field feedback to product revisions. Software updates, communication improvements, protection refinements, and compatibility enhancements may be managed alongside hardware development rather than treated as completely separate activities.

For system owners, manufacturing strength is valuable because an inverter is expected to operate for many years in changing environmental and electrical conditions. A product’s long-term value depends not only on its initial efficiency but also on design consistency, quality control, documentation, spare parts, firmware support, warranty administration, and service capability.

Design Guidance for Residential and Commercial Projects

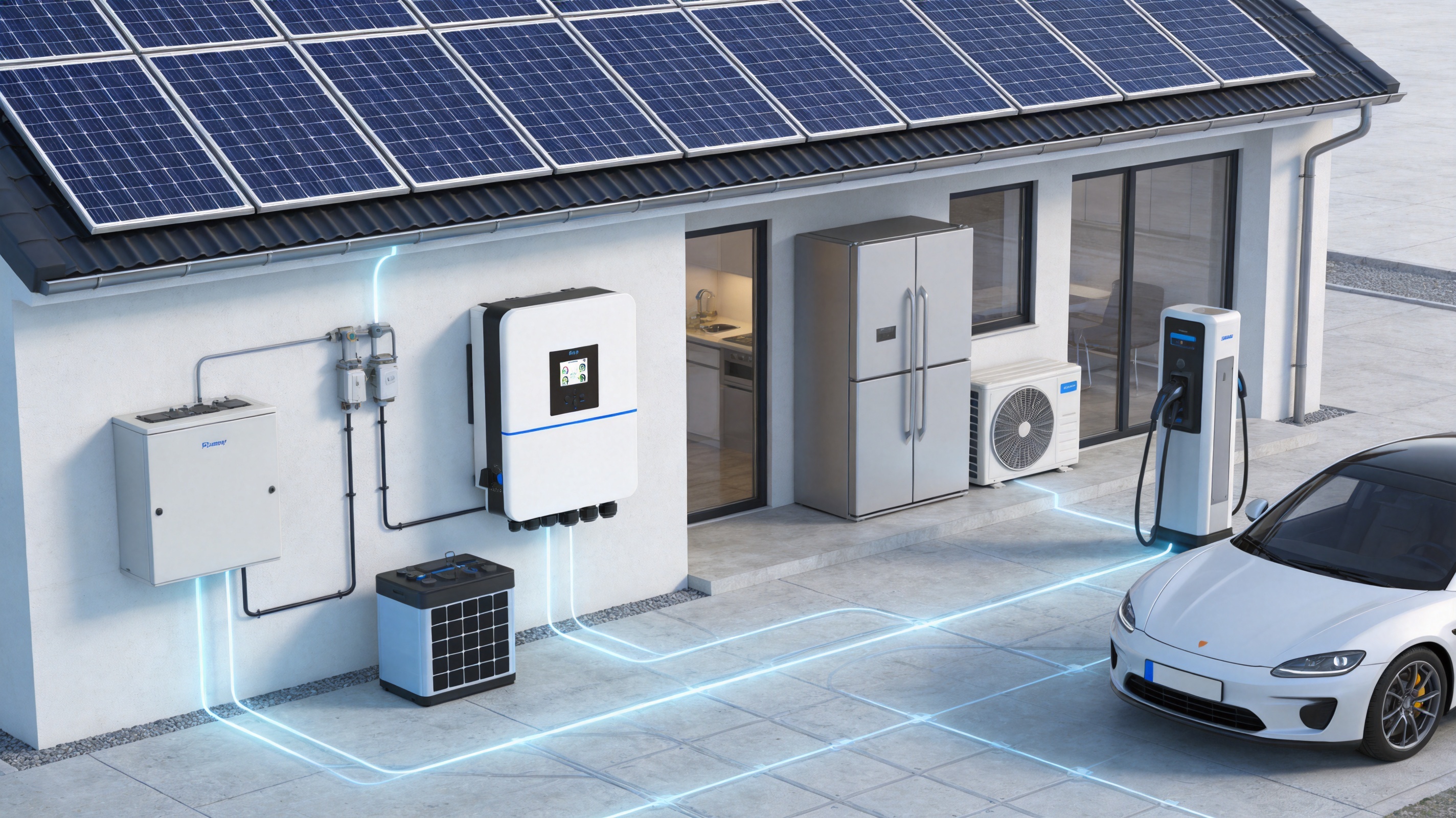

For residential projects, the appropriate model depends on the home’s three-phase demand, PV array size, battery capacity, backup expectations, and future expansion plans. The 5 kW and 6 kW versions may suit moderate loads, while the 8 kW, 10 kW, and 12 kW versions can serve larger homes with heat pumps, workshops, pumps, or electric vehicle charging strategies.

For small commercial facilities, designers should examine the daily load curve rather than selecting an inverter only by the total connected load. The six time periods can be configured around operating hours and tariff windows. Battery capacity should be matched to the amount of energy that must be shifted or backed up, not simply to the inverter’s maximum power.

PV array design should consider the two MPPT inputs separately. Roof sections with different orientations should normally be assigned to different trackers where practical. Shading analysis, string voltage calculations, temperature correction, and current compatibility are essential. Designers should also consider whether the selected module’s short-circuit current is appropriate for the inverter’s input limit.

Battery design should consider usable energy, nominal capacity, maximum continuous current, peak current, operating temperature, communication compatibility, and expected cycling. A battery with a large nominal capacity may not deliver the required peak power if its BMS imposes a lower current limit. Conversely, an inverter’s 37 A battery current capability does not mean that every battery can safely accept or provide that current.

Backup design should distinguish between essential and nonessential loads. A properly designed backup distribution board can prevent high-power discretionary loads from draining the battery too quickly. Automatic load control, smart energy meters, and scheduled charging may further improve system performance.

Generator projects require additional engineering. The generator’s rated output, minimum loading requirement, frequency stability, start signal, fuel system, maintenance schedule, and transfer arrangement should be considered. The inverter may store generator energy, but the total system must prevent unstable operation caused by rapid changes in battery charging power or load demand.

Installation, Commissioning, and Service Considerations

Installation should follow the applicable manual, electrical code, and grid connection procedure. The inverter should be mounted on a suitable wall or support structure with adequate clearance for cooling and service. PV, battery, AC, communications, and protective earth cables should be routed separately where required and secured against mechanical strain.

Before energization, the installer should verify polarity, insulation resistance, open-circuit voltage, short-circuit current, protective earth continuity, battery voltage, communication wiring, breaker ratings, and torque values. The battery BMS should be recognized by the inverter, and the correct battery type and operating limits should be configured.

Commissioning should include a controlled test of grid-connected operation, battery charging, battery discharging, backup operation, monitoring communication, and protective shutdown behavior. Where a generator is present, its start and stop sequence should be tested under safe conditions. Where an AC-coupled PV inverter is used, the interaction between both inverters should be evaluated during normal and backup operation.

Service planning should include periodic inspection of cables, connectors, ventilation openings, environmental conditions, alarms, firmware versions, and battery health. Outdoor systems should be checked for water accumulation, corrosion, insect activity, dust buildup, and damage caused by storms or construction work.

Remote monitoring can support preventive maintenance, but it does not eliminate the need for physical inspection. A communication failure may hide a developing issue, and some mechanical or environmental problems cannot be identified through software alone.

Economic and Environmental Value

The inverter can improve the economic value of a PV system by increasing self-consumption. Solar energy that would otherwise be exported at a low compensation rate can be stored and used later when the building needs electricity. This is especially valuable where export payments are limited or where evening electricity prices are higher.

High conversion efficiency helps preserve more of the generated energy. Flexible scheduling can reduce grid purchases during expensive periods. Backup operation can reduce the financial impact of outages, particularly for businesses that depend on refrigeration, communications, pumps, security systems, or information technology.

Battery storage also supports more efficient generator operation. By allowing a generator to run at a suitable load and store surplus energy, the system can reduce inefficient low-load operation. In remote applications, this may lower fuel usage and reduce maintenance requirements.

From an environmental perspective, increased solar self-consumption and reduced generator runtime can lower the use of fossil-fuel-based electricity. The overall environmental benefit depends on the electricity mix, battery manufacturing, system lifetime, operating strategy, and recycling arrangements. A durable inverter with efficient conversion and long-term service support can contribute to better lifecycle performance.

Frequently Asked Questions

What type of inverter is the SUN-5/6/8/10/12K-SG01HP3-EU-DM2?

It is a three-phase high-voltage hybrid inverter family available in 5 kW, 6 kW, 8 kW, 10 kW, and 12 kW versions. It combines PV conversion, battery storage management, grid interaction, backup operation, and energy scheduling.

What battery voltage range does it support?

The specified lithium-ion battery voltage range is 160 to 700 V. Battery compatibility and BMS communication must be confirmed before installation.

What is the maximum battery charging and discharging current?

The maximum charging and discharging current is 37 A. The actual operating current may be limited by the battery BMS, temperature, state of charge, configuration, or system settings.

Can the inverter be used with an existing PV system?

Yes. The product supports AC coupling for retrofit applications. The existing PV inverter, protection system, backup architecture, and grid requirements must be evaluated by a qualified installer.

How many PV trackers does it have?

The inverter has two MPPTs with one PV string input per tracker. This supports separate optimization for two PV arrays with different orientations or operating conditions.

Can it operate with unbalanced three-phase loads?

Yes. The product supports 100% unbalanced output, which helps it serve buildings where load demand is uneven between phases.

Can several units work together?

Up to ten units can operate in parallel for on-grid and off-grid operation, subject to the system design, firmware, communication, protection, and local requirements.

Can multiple batteries be connected in parallel?

The product supports multiple batteries in parallel, but the battery manufacturer’s voltage, current, communication, protection, and installation requirements must be followed.

Does it support a diesel generator?

Yes. The inverter can support storing energy from a diesel generator. Generator voltage, frequency, grounding, automatic start, changeover, and control compatibility must be checked during system design.

How many battery scheduling periods are available?

The inverter supports six time periods for battery charging and discharging. These periods can be used to coordinate operation with tariffs, solar production, load demand, and backup reserves.

What is the peak off-grid power capability?

The specified peak power is 1.5 times the rated power for ten seconds. Actual performance depends on battery capability, temperature, state of charge, wiring, and the characteristics of the connected loads.

What communications interfaces are available?

The inverter includes RS485, RS232, and CAN interfaces. Optional monitoring methods include GPRS, Wi-Fi, Bluetooth, 4G, and LAN.

What protection functions are integrated?

Integrated functions include DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC short-circuit protection, DC component monitoring, anti-islanding protection, a DC switch, insulation impedance detection, and residual current detection. AFCI is optional.

Is the inverter suitable for outdoor installation?

The enclosure has an IP65 rating and the operating temperature range is specified as -40°C to +60°C, with derating above 45°C. Outdoor installation must still follow the manual, including requirements for mounting, ventilation, clearance, drainage, and environmental protection.

What warranty is listed for the product?

The listed warranty is five years, with an option of up to ten years. The exact warranty period varies by installation country and is governed by the applicable warranty policy.

Conclusion

The SUN-5/6/8/10/12K-SG01HP3-EU-DM2 series is designed for energy systems that require more than basic solar conversion. Its three-phase architecture, high-voltage battery input, dual MPPT design, AC-coupling capability, six charging and discharging periods, 100% unbalanced output, generator support, and parallel expansion options provide a broad foundation for modern energy management.

Its technical advantages are reinforced by a comprehensive protection package, multiple communication options, high conversion efficiency, low harmonic distortion, outdoor-capable enclosure, and support for a wide range of grid standards. These features help the platform compete with conventional hybrid inverters that may offer only limited battery voltage, single-phase output, basic scheduling, or restricted backup functionality.

The manufacturer’s experience in PV inverters, energy storage, microinverters, commercial energy systems, and energy IoT supports a broader system-level approach to product development. Research and development, manufacturing coordination, international deployment, component quality management, testing, and service infrastructure are all important factors when selecting equipment intended to operate for many years.

For residential, commercial, agricultural, and light industrial users, the main value of this inverter family lies in flexibility. It can help increase solar self-consumption, support time-of-use optimization, provide backup power, integrate with generators, modernize existing PV installations, and grow with future energy requirements. Proper engineering and professional installation remain essential, but the platform provides the electrical capabilities needed to build scalable and resilient three-phase solar-plus-storage systems.

References

1. Product technical data for the SUN-5/6/8/10/12K-SG01HP3-EU-DM2 three-phase high-voltage hybrid inverter series.

2. Product installation and operation manual for the SUN-5/6/8/10/12K-SG01HP3-EU-DM2 series.

3. IEC 61727, Photovoltaic systems — Characteristics of the utility interface.

4. IEC 62116, Utility-interconnected photovoltaic inverters — Test procedure of islanding prevention measures.

5. IEC/EN 62109-1 and IEC/EN 62109-2, Safety of power converters for use in photovoltaic power systems.

6. EN 50549, Requirements for the connection of generating plants to low-voltage and medium-voltage distribution networks.

7. IEC/EN 61000 series, Electromagnetic compatibility requirements for electrical and electronic equipment.

8. General principles of lithium-ion battery management, high-voltage energy storage integration, and photovoltaic system design.
