As solar power continues to move from a supplementary energy source to a central part of modern electricity infrastructure, photovoltaic system designers need inverters that combine high conversion efficiency, flexible system design, reliable grid interaction, and long-term operating stability. The SUN-3/4/5/6/7/8/9/10/12/15K-G06P3-EU-AM2 three-phase string inverter family is designed to address these requirements across residential, commercial, and small industrial solar applications.

Covering rated output capacities from 3 kW to 15 kW, this product family offers a scalable platform for different installation sizes. Each model uses two maximum power point tracking channels, supports a broad PV voltage range, and provides advanced protection and monitoring functions. The product is suitable for new solar installations as well as system expansions where consistent performance, grid compliance, and straightforward installation are essential.

Unlike many basic grid-connected inverters that focus primarily on DC-to-AC conversion, this series is designed as a complete power-management interface between the photovoltaic array and the public grid. Functions such as zero-export operation, voltage-source generator application support, optional string-level monitoring, optional anti-PID capability, wide output voltage compatibility, and multiple communications options help system owners obtain greater control over their energy assets.

The product family is manufactured by Ningbo Deye Inverter Technology Co., Ltd., a technology manufacturer with experience in photovoltaic inverters, energy storage systems, microinverters, and related energy-management solutions. The company integrates research and development, product design, manufacturing, sales, and service, enabling it to coordinate the major stages of product development and market support.

SUN-3/4/5/6/7/8/9/10/12/15K-G06P3-EU-AM2

Product Overview

The SUN-(3-15)K-G06P3-EU-AM2 is a three-phase string inverter platform with ten output ratings: 3 kW, 4 kW, 5 kW, 6 kW, 7 kW, 8 kW, 9 kW, 10 kW, 12 kW, and 15 kW. This range allows installers to select an inverter that closely matches the intended system size rather than using one oversized unit for every project.

All models are designed for three-phase grid connection using a 3L/N/PE configuration. They support common European low-voltage network arrangements, including 220/380 V and 230/400 V systems. The rated grid frequency can be configured for 50 Hz or 60 Hz within the stated operating ranges, supporting deployment across multiple markets subject to applicable local certification and utility requirements.

The inverter family has a maximum PV input voltage of 1,100 V and an MPPT operating range from 120 V to 1,000 V. Its 140 V startup voltage helps the inverter begin operation under suitable solar conditions, while the broad tracking range gives designers more freedom when configuring module strings.

Maximum PV input power varies by model, from 4.5 kW for the 3 kW inverter to 22.5 kW for the 15 kW inverter. This creates a practical DC-to-AC sizing relationship for applications that seek to increase annual energy production by installing a larger PV array than the inverter’s nominal AC rating.

Model	Rated AC Output	Maximum PV Input Power	Maximum AC Apparent Power
SUN-3K-G06P3-EU-AM2	3 kW	4.5 kW	3.3 kVA
SUN-4K-G06P3-EU-AM2	4 kW	6 kW	4.4 kVA
SUN-5K-G06P3-EU-AM2	5 kW	7.5 kW	5.5 kVA
SUN-6K-G06P3-EU-AM2	6 kW	9 kW	6.6 kVA
SUN-7K-G06P3-EU-AM2	7 kW	10.5 kW	7.7 kVA
SUN-8K-G06P3-EU-AM2	8 kW	12 kW	8.8 kVA
SUN-9K-G06P3-EU-AM2	9 kW	13.5 kW	9.9 kVA
SUN-10K-G06P3-EU-AM2	10 kW	15 kW	11 kVA
SUN-12K-G06P3-EU-AM2	12 kW	18 kW	13.2 kVA
SUN-15K-G06P3-EU-AM2	15 kW	22.5 kW	16.5 kVA

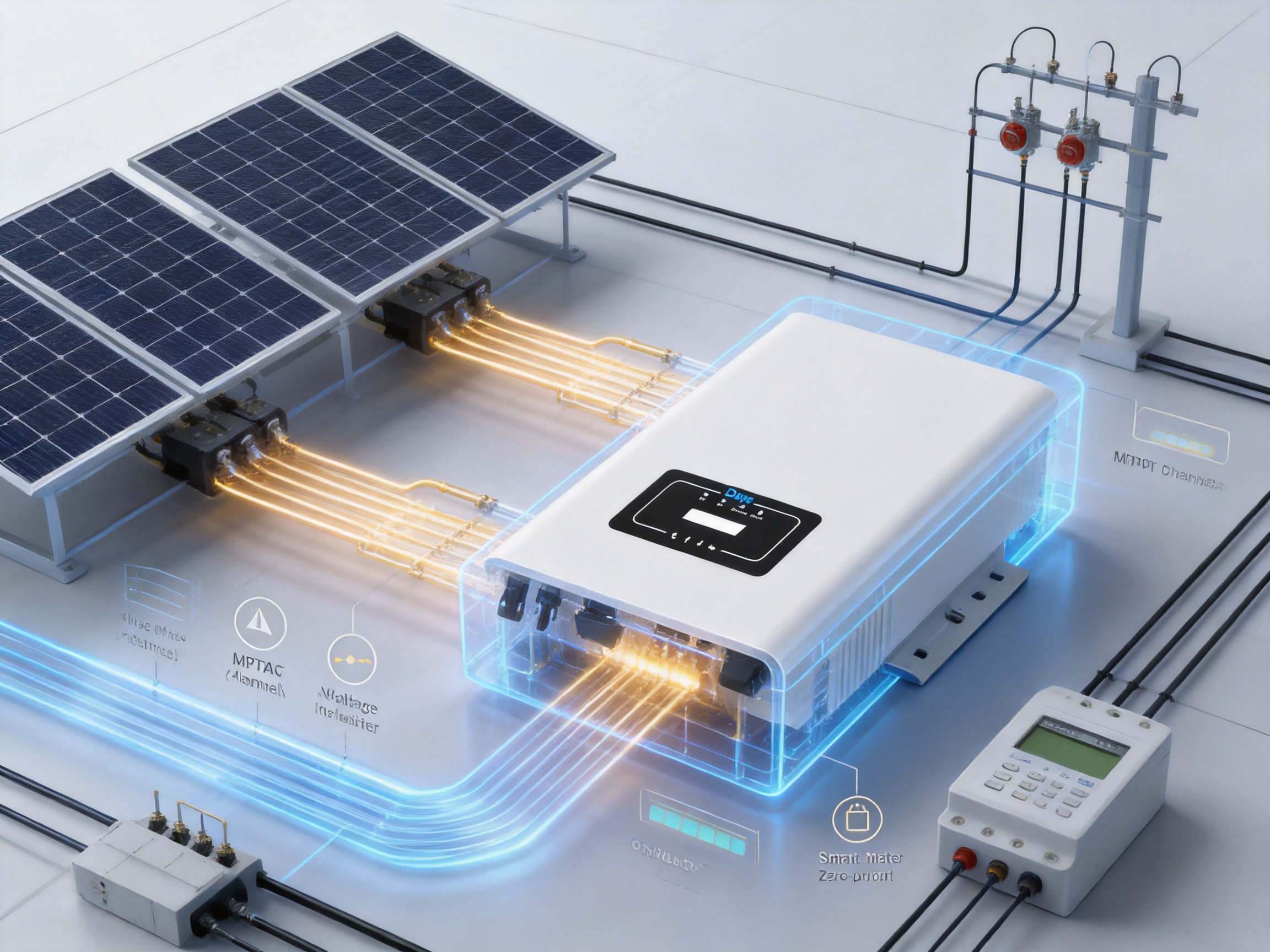

Two MPPT Channels for Better PV Design Flexibility

One of the key advantages of the series is its two maximum power point trackers. Solar arrays rarely operate under perfectly uniform conditions. Roof orientations, installation angles, nearby buildings, trees, dust, seasonal shading, and module mismatch can cause different sections of an array to receive different levels of irradiance.

With two independent MPPT channels, installers can connect separate groups of PV modules to different electrical operating points. This is particularly useful when modules are installed on two roof planes, when array orientations differ, or when the system includes strings with different lengths. Each tracker can adjust its operating point to help the connected array section deliver its available power.

The standard string configuration varies according to model. The lower-capacity models provide two MPPTs with one string per tracker, while higher-capacity versions support two MPPTs with two strings on one or both relevant inputs as specified by the electrical design. Maximum operating current is up to 13 A plus 13 A on the applicable configuration, or 13 A plus 26 A for models supporting additional string capacity. The maximum input short-circuit current is up to 19.5 A plus 19.5 A or 19.5 A plus 39 A, depending on the model configuration.

These input characteristics help the inverter accommodate contemporary high-power PV modules while giving designers practical choices for string arrangement. Correct string design remains essential. Installers should verify module operating current, short-circuit current, voltage at the lowest expected temperature, and the applicable local installation rules before commissioning a system.

Compared with a single-tracker design, two MPPT channels can reduce the impact of orientation differences and partial shading. Compared with some larger multi-tracker products, this architecture can remain compact and economical for small and medium-sized three-phase systems. It offers a useful balance between system flexibility, hardware simplicity, and cost control.

High Conversion Efficiency and Effective Energy Harvesting

The product family achieves maximum efficiency of up to 98.5 percent, while the stated European efficiency reaches up to 98 percent depending on the model. MPPT efficiency is greater than 99 percent. These figures indicate that the inverter is designed to minimize conversion and tracking losses over a broad range of operating conditions.

High efficiency is important because even small losses accumulate over the operating life of a solar system. When an inverter processes thousands of kilowatt-hours each year, a modest improvement in conversion performance can contribute to greater energy yield and improved project economics. Efficiency also affects thermal behavior: less energy lost as heat can support stable operation and reduce the thermal burden on internal components.

The efficiency values are distributed across the product range rather than being limited to a single premium model. Maximum efficiency is specified at 98.1 percent for the 3 kW model, rising through the series to as high as 98.5 percent for selected models. This gives system designers access to strong efficiency performance across multiple project sizes.

The inverter’s non-isolated topology supports a compact power-conversion design. This topology is widely used in modern grid-connected PV systems because it can provide high efficiency and reduce the size and weight associated with a low-frequency transformer. At the same time, the product includes insulation monitoring, residual current detection, ground fault current monitoring, and other protective functions to support safe operation.

Wide Voltage Range and Three-Phase Grid Compatibility

A broad MPPT voltage range of 120 V to 1,000 V provides design flexibility for different module counts and string lengths. The 1,100 V maximum PV input voltage gives an additional design margin, although string voltage must always be calculated using the lowest expected ambient temperature and the module manufacturer’s electrical data.

On the AC side, the inverter supports 220/380 V and 230/400 V output systems, with an output voltage operating range of 0.85 Un to 1.1 Un. This enables compatibility with common three-phase low-voltage networks in many international markets. The three-phase architecture is especially suitable for commercial buildings, workshops, agricultural facilities, small factories, and other sites with balanced or semi-balanced three-phase loads.

The rated power factor adjustment range extends from 0.8 leading to 0.8 lagging. This gives grid operators and system designers additional control over reactive power behavior where required by local grid codes. Power factor management can be important in commercial applications, particularly where grid connection rules require voltage support or reactive power control.

Total current harmonic distortion is specified at less than 3 percent, while DC injection current is less than 0.5 percent of rated current. These characteristics support cleaner grid interaction and help the inverter satisfy the electrical quality requirements associated with modern distributed generation.

Zero Export and VSG Application Support

Many solar installations are required to prevent energy from flowing back into the public grid. This may be due to utility restrictions, an energy contract, local regulations, or a site owner’s preference to consume as much solar power as possible on-site. The series supports zero-export applications when used with the appropriate monitoring and control equipment.

Zero-export control can be valuable for factories, retail premises, office buildings, farms, and other facilities where daytime electricity consumption is significant but grid export is limited. By coordinating inverter output with site consumption and an external meter or control system, the PV plant can be configured to reduce unwanted reverse power flow.

The product also supports VSG application requirements. A virtual synchronous generator function is intended to provide behavior that resembles certain characteristics of conventional synchronous generation, such as controlled power response and enhanced interaction with the electrical network. The exact operating mode, settings, and availability depend on the system architecture, local grid requirements, and applicable product configuration.

These functions distinguish the inverter from basic grid-tie products that only deliver energy whenever solar power is available. They make the platform more adaptable to evolving grid conditions and to installations where control of active and reactive power is becoming increasingly important.

Optional Intelligent String Monitoring and Anti-PID Function

Solar system performance can be affected by individual string faults, loose connections, blown fuses, module degradation, and uneven environmental conditions. Optional intelligent string monitoring can help operators identify abnormal string behavior earlier than relying solely on total inverter output.

String-level information can support preventive maintenance by helping technicians determine whether a problem is isolated to one string or associated with a larger part of the array. This can reduce troubleshooting time, improve maintenance planning, and help prevent minor issues from remaining undetected for long periods.

The optional anti-PID function provides an additional tool for projects concerned about potential-induced degradation. PID can reduce the performance of certain PV modules under specific voltage, environmental, and system conditions. The anti-PID feature is intended to help address this risk when the overall module and system design require it.

Because both functions are optional, project developers can choose the level of monitoring and protection appropriate for the installation. A small, easily accessible roof may not need the same diagnostic capability as a distributed commercial array with difficult access or high maintenance costs. This configurable approach can help avoid paying for features that a particular project does not require.

Comprehensive Protection Architecture

Safety is a central requirement for every grid-connected PV inverter. The product includes a broad set of electrical and operational protection functions. These include DC polarity reverse connection protection, AC output overcurrent protection, AC output overvoltage protection, AC short-circuit protection, thermal protection, DC insulation impedance monitoring, DC component monitoring, ground fault current monitoring, power network monitoring, islanding protection monitoring, earth fault detection, overvoltage load-drop protection, and residual current detection.

The inverter also provides Type II surge protection on both the DC and AC sides. Surge protection helps reduce the risk associated with transient overvoltages caused by switching events, atmospheric disturbances, or other electrical conditions. The final protection design should still consider the complete installation, including external surge protective devices, cable routing, earthing, lightning protection, and local electrical codes.

An optional arc fault circuit interrupter is available. Arc faults can occur when damaged conductors, poor connections, mechanical stress, or insulation deterioration create an unintended electrical arc. Where required by local standards or considered beneficial for the application, AFCI can add another layer of protection to the PV installation.

The combination of internal monitoring and protective functions is an advantage over low-cost inverters that may provide only basic overvoltage and overcurrent protection. A comprehensive protection architecture can support safer commissioning, more controlled fault response, and improved confidence over the system’s operating life.

Thermal Design, Enclosure Protection, and Quiet Operation

The inverter uses natural cooling rather than forced-air fans. Fanless or naturally cooled designs can offer several practical advantages. They reduce the number of moving parts, avoid fan noise, and limit the risk of fan bearing wear or dust accumulation affecting cooling performance.

The stated operating temperature range is from -25°C to +60°C, with derating above 45°C. Thermal derating is a normal characteristic of power electronics. When ambient temperatures rise, reducing output power can help keep internal components within their permitted temperature range. System designers should account for local climate, installation orientation, wall clearance, solar exposure, and ventilation when selecting the installation location.

The IP65 enclosure rating provides protection against dust ingress and water jets from various directions. This makes the inverter appropriate for many outdoor or semi-outdoor locations when installed according to the instructions. IP protection does not mean the product should be placed in standing water, exposed to unnecessary flooding, or installed without regard to direct solar heating.

Noise is specified at less than 45 dB. Quiet operation can be valuable for installations close to offices, homes, schools, hospitality facilities, or other areas where equipment noise may be a concern. Natural cooling and a low acoustic profile help the product integrate into environments where a large fan-cooled inverter might be less suitable.

The unit operates at altitudes up to 4,000 meters and permits ambient humidity from 0 to 100 percent, subject to the specified installation conditions and protection against condensation-related risks. These characteristics broaden the potential deployment range, although site-specific environmental assessment remains necessary.

Compact Construction and Installation Advantages

The cabinet measures approximately 283 × 463 × 178 millimeters, excluding connectors and brackets, and weighs approximately 11 kilograms. This compact, lightweight construction can simplify transportation, wall mounting, handling, and service access.

Compact dimensions are particularly helpful on commercial projects where electrical rooms are crowded or where several inverters must be installed in a limited area. They can also reduce the structural demands associated with mounting equipment on walls or support frames.

Because the platform covers ten power ratings with a consistent product concept, installers can use familiar design and commissioning practices across multiple projects. Standardization can reduce training requirements, simplify spare-parts planning, and make it easier for engineering teams to create repeatable installation procedures.

Installation quality remains essential. The inverter should be mounted on a structurally suitable surface with adequate clearance for heat dissipation, wiring, inspection, and maintenance. DC and AC conductors must be selected according to current, voltage, temperature, cable length, and local regulations. All protective earth, disconnection, and surge protection requirements must be observed.

Communication and Monitoring Options

The communication interface includes RS485 and RS232. These interfaces can support connection to meters, monitoring devices, external controllers, and other system components, depending on the final project architecture.

Optional monitoring modes include GPRS, Wi-Fi, Bluetooth, 4G, and LAN. This range allows users to select a communication method based on site conditions. Wi-Fi may be convenient for buildings with stable network coverage, while 4G can be useful at remote locations. LAN communication can be appropriate for commercial facilities with structured network infrastructure, and Bluetooth can simplify local commissioning or service access.

Monitoring is more than a convenience feature. It can give owners visibility into daily energy production, operating status, alarms, historical performance, and potential faults. For installers and service teams, remote information can reduce unnecessary site visits and help prepare the correct tools and replacement components before arriving at the location.

Deye’s broader energy IoT ecosystem, including its Deye Cloud App, supports the company’s strategy of connecting hardware with digital management tools. The precise monitoring functions available to a particular inverter depend on the communication accessories, software environment, region, and project configuration.

Compared with products that provide only local display information, the available communications options support more convenient remote management. This becomes increasingly valuable as PV portfolios expand from one installation to many distributed sites.

Grid Standards and International Application

The inverter family is designed with a broad group of grid and safety standards in mind. Listed grid regulations include IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, and VDE-AR-N 4105. The listed safety and electromagnetic compatibility standards include IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4, IEC/EN 62109-1, and IEC/EN 62109-2.

These standards relate to grid interaction, anti-islanding behavior, inverter safety, electromagnetic compatibility, and regional connection requirements. Certification and approval requirements can differ by country, utility, and project type. Therefore, installers should confirm that the exact model, firmware version, settings, and certificate package satisfy the requirements of the intended installation.

International standard coverage is an important advantage for manufacturers serving multiple markets. It can reduce the need to create an entirely different product architecture for every country and can provide engineering teams with a more consistent base platform.

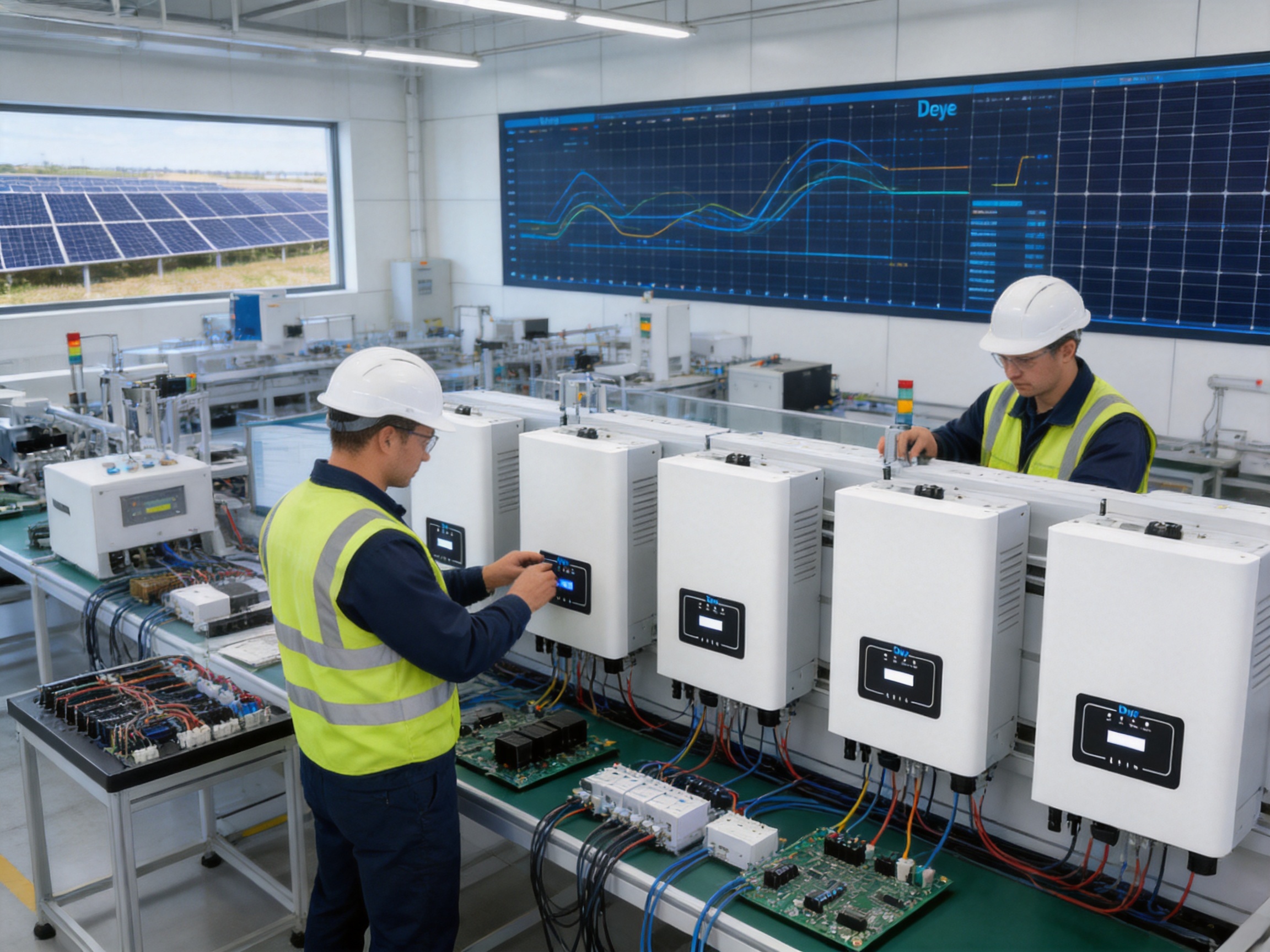

Manufacturing Strengths and Product Development Capability

Ningbo Deye Inverter Technology Co., Ltd. was founded in 2000 and operates as a comprehensive technology manufacturing enterprise integrating research and development, design, production, sales, and service. This vertically coordinated structure supports a complete product-development cycle, from technical concept and hardware design through manufacturing, field support, and product improvement.

The company’s portfolio includes PV string inverters, energy storage inverters, microinverters, energy storage systems, environmental appliances, and related energy-management products. This breadth gives the organization exposure to different electrical architectures, power levels, thermal requirements, communication technologies, and user expectations.

Its stated inverter portfolio extends from 1 kW to 136 kW for string inverters, from 3 kW to 80 kW for energy storage inverters, and from 300 W to 2.2 kW for microinverters. Such a broad product range can support technology sharing and platform learning across residential, commercial, industrial, and distributed generation applications.

Advanced manufacturing is not limited to assembling circuit boards. A reliable inverter requires coordinated control of component selection, printed circuit board production, power semiconductor integration, enclosure construction, thermal management, software loading, electrical testing, safety verification, calibration, and final inspection.

For a product such as the SUN-(3-15)K-G06P3-EU-AM2, manufacturing quality is reflected in the consistency of MPPT behavior, the accuracy of current and voltage measurement, the stability of communications, the reliability of protective functions, and the ability of every finished unit to meet the declared operating specifications.

A mature manufacturing process normally includes controlled incoming inspection for key components, standardized assembly procedures, traceability of production batches, automated or semi-automated soldering processes, inspection of solder joints, firmware control, insulation testing, dielectric withstand testing, functional testing, and power-conversion verification. The exact process details may vary by production site and product version, but these quality principles are fundamental to dependable power electronics.

Research and development capability is equally important. Grid-connected inverters must respond to changing grid codes, new PV module electrical characteristics, evolving cybersecurity expectations, and the increasing need for coordinated operation with meters, batteries, loads, and energy-management systems. A manufacturer with in-house technical development can adapt the product platform more effectively than a company that depends entirely on external design sources.

The company’s global market presence also contributes to practical product knowledge. Products sold across more than 140 countries and regions encounter different climates, grid conditions, installation practices, and customer requirements. Experience across these environments can support product refinement, documentation improvement, certification management, and service development.

How the Product Compares with Common Alternatives

Compared with Single-Phase Inverters

Single-phase inverters can be suitable for small homes and small loads, but they are not always the best choice for facilities with three-phase service. Using a three-phase inverter can help align PV generation with the site’s electrical architecture and reduce the need for multiple single-phase units.

The three-phase platform is well suited to buildings with three-phase motors, commercial HVAC equipment, pumps, workshops, agricultural machinery, and balanced distribution boards. It can also simplify system design where the utility connection requires three-phase power conversion.

Compared with Single-MPPT Designs

A single-MPPT inverter may be adequate for a simple, unshaded array on one roof plane. However, two MPPTs offer greater flexibility when the array includes different orientations, varying string lengths, or sections with different shading patterns.

The two-tracker architecture in this product family provides a practical middle ground. It offers more design freedom than a basic single-tracker inverter while remaining more compact and potentially more economical than a much larger inverter with numerous independent trackers.

Compared with Basic Low-Cost Grid-Tie Products

Some low-cost products focus on minimal conversion functionality and may provide limited protection, communication, or grid-support capability. The SUN-(3-15)K-G06P3-EU-AM2 includes a wider set of protective functions, optional monitoring, optional anti-PID support, reactive power control, zero-export application support, and VSG application capability.

These features can increase the suitability of the inverter for professional commercial installations where operational visibility, grid compliance, and long-term serviceability are more important than the lowest initial purchase price.

Compared with Fan-Cooled Inverters

Fan-cooled inverters can provide high thermal performance, especially in demanding conditions, but fans introduce moving parts and may produce more audible noise. The natural-cooling design of this series offers quiet operation and can reduce fan-related maintenance concerns.

Natural cooling does not remove the need for good installation practice. Adequate clearance and protection from excessive direct heat remain important. Nevertheless, for many distributed PV systems, a compact, fanless, IP65-rated enclosure is an attractive alternative.

Applications Across Different PV Projects

The 3 kW and 4 kW models can serve smaller three-phase homes, workshops, agricultural buildings, and light commercial premises. They may also be useful for phased projects where the PV array is expected to expand later.

The 5 kW to 10 kW models are suitable for a broad range of commercial rooftops, small offices, retail sites, educational facilities, clinics, farms, and service businesses. These capacities can support self-consumption projects where daytime loads absorb a significant portion of solar production.

The 12 kW and 15 kW versions can support larger commercial rooftops, warehouses, small manufacturing sites, pump stations, and distributed energy projects. Multiple units can be combined in larger installations, subject to the design requirements of the electrical distribution system, monitoring architecture, and applicable regulations.

Zero-export capability can be particularly useful for locations with strict export limits. Optional string monitoring can benefit sites where array access is difficult or where downtime has a high economic cost. The wide temperature and altitude ratings also support use in varied geographic environments.

For projects that may later add energy storage, EV charging, or advanced energy management, the inverter’s communications and grid-support capabilities can provide a useful foundation. The inverter itself is a grid-connected PV product, so storage integration must be designed using compatible equipment and an approved system architecture.

System Design Considerations

Correct system design begins with selecting the model according to both AC load requirements and the intended PV array size. The maximum PV input power values provide a reference, but designers should also consider local solar conditions, clipping expectations, array orientation, annual energy targets, and utility requirements.

String voltage must remain below the maximum PV input voltage under the coldest expected conditions. At the same time, the operating voltage should remain within the MPPT range under the lowest practical irradiance conditions. Designers should use the actual module voltage temperature coefficient and local weather data rather than relying only on nominal module voltage.

String current must be checked against the inverter’s maximum operating current and maximum short-circuit current. Parallel strings should be arranged according to the supported MPPT configuration. Mismatch between strings connected to the same tracker should be minimized unless the design has been specifically evaluated for the expected operating conditions.

AC cable sizing should account for rated and maximum output current, voltage drop, installation method, ambient temperature, grouping, and local electrical rules. The AC protection device, isolator, residual current protection, surge protection, and earthing arrangement must be selected as part of the complete system rather than treating the inverter as an isolated component.

Communication planning should be completed before installation. The project team should determine whether Wi-Fi, LAN, 4G, GPRS, RS485, or another method offers the most reliable connection. For large portfolios, naming conventions, user permissions, alarm escalation, and data retention should be established in advance.

Commissioning should include visual inspection, polarity checks, insulation measurements, open-circuit voltage verification, protective conductor checks, grid parameter confirmation, communication testing, and functional verification. Only qualified personnel familiar with PV electrical systems should perform installation and commissioning.

Reliability, Serviceability, and Lifecycle Value

Solar inverters are expected to operate for many years under changing weather conditions and variable electrical loads. Reliability therefore depends on more than peak efficiency. It also depends on thermal stability, protection quality, component selection, enclosure design, software control, manufacturing consistency, and the availability of technical support.

The series is specified with a five-year warranty. Warranty terms and extension options may vary by market and sales channel, so project owners should confirm the applicable conditions before purchase. A clear warranty framework can provide greater confidence for installers, distributors, and asset owners.

Natural cooling, IP65 protection, a compact enclosure, and extensive internal monitoring can contribute to long-term serviceability. If an alarm occurs, communication and diagnostic information may help technicians identify whether the issue is associated with the PV array, grid conditions, temperature, insulation, communications, or another system component.

The product’s standardized family structure may also support lifecycle management. A distributor or installer handling several capacity classes can maintain familiarity with a common design approach, while an owner with multiple sites can use similar monitoring and maintenance procedures across the portfolio.

Frequently Asked Questions

What type of inverter is the SUN-(3-15)K-G06P3-EU-AM2?

It is a three-phase grid-connected string inverter family with rated AC output capacities from 3 kW to 15 kW. The family includes two MPPT channels and is intended for photovoltaic systems connected to compatible low-voltage three-phase grids.

How many MPPTs does the inverter have?

Each model has two maximum power point trackers. Depending on the model, the supported string arrangement is either two MPPTs with one string per tracker or two MPPTs with additional parallel string capacity.

What is the maximum PV input voltage?

The maximum PV input voltage is 1,100 V. The MPPT voltage range is 120 V to 1,000 V, and the startup voltage is 140 V. Actual string design must consider module specifications and the lowest expected site temperature.

What is the highest efficiency in the product family?

Maximum efficiency reaches up to 98.5 percent for the applicable models. European efficiency reaches up to 98 percent, and MPPT efficiency is greater than 99 percent.

Can the inverter be used for zero-export systems?

Yes. The product supports zero-export applications when integrated with suitable metering and control equipment. The final configuration must be designed according to the site’s electrical arrangement and local requirements.

Does it support reactive power control?

Yes. The stated power factor adjustment range is 0.8 leading to 0.8 lagging. The exact control mode and permitted settings depend on the local grid code and project configuration.

Does the inverter include string monitoring?

String intelligent monitoring is available as an optional function. It can help operators identify abnormal string behavior and support more efficient troubleshooting and preventive maintenance.

Is anti-PID functionality included?

Anti-PID functionality is listed as optional. It may be selected for projects where the PV module technology and system conditions create a relevant potential-induced degradation concern.

Is the inverter suitable for outdoor installation?

The enclosure has an IP65 rating, and the specified operating temperature range is -25°C to +60°C, with derating above 45°C. Outdoor installation must still follow the installation instructions and provide suitable mechanical support, clearance, wiring protection, and environmental conditions.

Does the inverter use a cooling fan?

No. The stated cooling method is natural cooling. This supports quiet operation and avoids dependence on fan-based airflow, although adequate installation clearance remains necessary.

What communications options are available?

The communication interfaces include RS485 and RS232. Optional monitoring modes include GPRS, Wi-Fi, Bluetooth, 4G, and LAN.

What protection functions are provided?

The inverter includes DC reverse-polarity protection, AC overcurrent and overvoltage protection, short-circuit protection, thermal protection, insulation monitoring, ground fault monitoring, islanding protection, residual current detection, earth fault detection, and Type II surge protection on the DC and AC sides. AFCI is optional.

What is the warranty period?

The stated warranty period is five years. The applicable warranty terms should be confirmed with the authorized supplier for the intended market.

Who can benefit most from this inverter family?

The product is suitable for residential three-phase systems, commercial rooftops, workshops, farms, small industrial facilities, and distributed PV projects that require flexible string design, strong protection, three-phase compatibility, and optional monitoring or export-control functions.

Conclusion

The SUN-3/4/5/6/7/8/9/10/12/15K-G06P3-EU-AM2 family combines a practical capacity range with the features expected from a modern three-phase PV inverter. Two MPPT channels, a 1,100 V maximum PV input, a broad tracking range, high conversion efficiency, reactive power control, and three-phase grid compatibility provide a flexible foundation for many distributed solar projects.

Its advantages extend beyond energy conversion. Zero-export application support, VSG application capability, optional intelligent string monitoring, optional anti-PID functionality, extensive electrical protection, multiple communication choices, natural cooling, IP65 protection, and low operating noise make the platform adaptable to varied project requirements.

The manufacturing strength behind the product is also significant. Ningbo Deye Inverter Technology Co., Ltd. integrates research and development, design, production, sales, and service while maintaining a broad portfolio across PV inverters, energy storage, microinverters, and energy-management solutions. This integrated capability supports product development, certification, manufacturing quality, and global technical support.

For installers and system owners, the central value of the product family is balance. It combines high efficiency with practical installation dimensions, advanced functions with accessible capacity options, and comprehensive protection with a quiet natural-cooling design. When correctly selected, installed, configured, and maintained, it can provide a dependable platform for producing clean three-phase electricity over the long operating life of a solar PV system.

References

1. Product datasheet for the SUN-(3-15)K-G06P3-EU-AM2 three-phase string inverter family.

2. Installation and operating instructions for the SUN-3K-G06P3-EU-AM2 through SUN-12K-G06P3-EU-AM2 models.

3. IEC 62109-1 and IEC 62109-2, safety of power converters for use in photovoltaic power systems.

4. IEC 61727, photovoltaic systems and utility interface characteristics.

5. IEC 62116, utility-interconnected photovoltaic inverters and anti-islanding measures.

6. EN 50549, requirements for generating plants connected in parallel with distribution networks.

7. IEC 61000 series, electromagnetic compatibility requirements for electrical and electronic equipment.

8. Manufacturer information regarding photovoltaic inverters, energy storage systems, microinverters, monitoring platforms, and global manufacturing capabilities.
