Three-phase solar installations require an inverter that can combine high conversion efficiency, dependable grid interaction, flexible photovoltaic design, and long-term operating stability. The SUN-3/4/5/6/7/8/9/10/12/15K-G06P3-EU-AM2 family is designed for this role. Covering rated power levels from 3 kW to 15 kW, this three-phase string inverter platform supports residential, commercial, and small industrial photovoltaic systems where balanced three-phase output and precise energy management are essential.

The product family combines two maximum power point trackers, a broad operating voltage window, a maximum photovoltaic input voltage of 1,100 V, and maximum efficiency of up to 98.5%. It also supports zero-export applications, virtual synchronous generator applications, optional intelligent string monitoring, optional anti-PID functionality, and multiple communication methods. These features allow system designers to use the same basic inverter platform across a broad range of project sizes and installation conditions.

In addition to electrical performance, the inverter is designed for demanding outdoor environments. Its IP65 enclosure, natural cooling system, operating temperature range from -25°C to +60°C, and permissible altitude of up to 4,000 meters support installation in diverse climates. Integrated protective functions, Type II surge protection on both the DC and AC sides, and a range of grid and safety certifications further strengthen its suitability for professional photovoltaic deployment.

A Scalable Platform for Three-Phase Solar Systems

A major advantage of the product family is its graduated power range. Installers can select a 3 kW, 4 kW, 5 kW, 6 kW, 7 kW, 8 kW, 9 kW, 10 kW, 12 kW, or 15 kW model while retaining a similar design philosophy and installation concept. This simplifies product selection, engineering, commissioning, and maintenance for distributors and professional solar contractors.

The smaller models are suitable for three-phase homes, small workshops, rural properties, and compact commercial buildings. The higher-power versions can serve larger homes, offices, retail premises, agricultural buildings, light industrial facilities, and distributed commercial rooftop systems. Because the models share a common family structure, a company can develop standardized installation practices instead of managing completely different inverter architectures for each system size.

Rated AC active power ranges from 3 kW to 15 kW, while maximum AC apparent power ranges from 3.3 kVA to 16.5 kVA. This additional apparent power capability gives the inverter useful flexibility when operating under reactive power requirements or grid-support settings. The power factor adjustment range extends from 0.8 leading to 0.8 lagging, allowing the system to respond to project-specific grid requirements when configured appropriately.

The inverter uses a 3L/N/PE grid connection form and supports 220/380 V and 230/400 V output systems within a voltage range of 0.85 Un to 1.1 Un. It can operate at either 50 Hz or 60 Hz, with specified frequency ranges of 45–55 Hz and 55–65 Hz respectively. This broad compatibility helps engineering teams adapt the platform to regional electrical standards and local grid conditions.

Model family	Rated AC power	Maximum PV input power	Maximum apparent power
SUN-3K-G06P3-EU-AM2	3 kW	4.5 kW	3.3 kVA
SUN-4K-G06P3-EU-AM2	4 kW	6 kW	4.4 kVA
SUN-5K-G06P3-EU-AM2	5 kW	7.5 kW	5.5 kVA
SUN-6K-G06P3-EU-AM2	6 kW	9 kW	6.6 kVA
SUN-7K-G06P3-EU-AM2	7 kW	10.5 kW	7.7 kVA
SUN-8K-G06P3-EU-AM2	8 kW	12 kW	8.8 kVA
SUN-9K-G06P3-EU-AM2	9 kW	13.5 kW	9.9 kVA
SUN-10K-G06P3-EU-AM2	10 kW	15 kW	11 kVA
SUN-12K-G06P3-EU-AM2	12 kW	18 kW	13.2 kVA
SUN-15K-G06P3-EU-AM2	15 kW	22.5 kW	16.5 kVA

High-Efficiency Energy Conversion

Solar energy is available only when sunlight reaches the photovoltaic array, so every conversion stage matters. A small percentage difference in inverter efficiency can become significant over years of operation, particularly on larger commercial systems. The SUN-3/4/5/6/7/8/9/10/12/15K-G06P3-EU-AM2 family reaches maximum efficiency of up to 98.5%, with model-specific maximum efficiency values ranging from 98.1% to 98.5%.

Euro efficiency values range from 97.5% to 98.0% across the product range. Euro efficiency is useful because it reflects a weighted operating profile rather than only the best point on the efficiency curve. In practice, photovoltaic systems operate at different power levels throughout the day, so strong weighted efficiency can help improve daily energy yield and annual production.

The inverter also provides maximum power point tracking efficiency above 99%. Maximum power point tracking is responsible for identifying the voltage and current combination at which the photovoltaic array produces the greatest available power. High MPPT efficiency helps reduce energy losses caused by changing irradiance, temperature variation, partial shading, and normal differences between photovoltaic module strings.

Compared with basic inverter designs that may offer limited optimization across changing array conditions, the two-MPPT architecture gives system designers more control over array configuration. Different roof orientations, tilt angles, or string groupings can be connected to separate trackers. This can reduce the negative effect of mismatched operating conditions and improve the usable energy harvested from complex rooftops.

The platform also permits photovoltaic oversizing up to 150% of the rated AC output, depending on the selected model. For example, the 10 kW model accepts up to 15 kW of PV input power, while the 15 kW model accepts up to 22.5 kW. Appropriate DC oversizing can extend the period during which the inverter operates near its optimal power range, particularly in locations with weak winter sunlight, high temperatures, non-ideal roof orientation, or limited morning and afternoon irradiance.

Flexible Photovoltaic Input Design

The inverter accepts a maximum PV input voltage of 1,100 V, with a start-up voltage of 140 V and an MPPT voltage range of 120–1,000 V. These values give installers useful flexibility when designing string lengths. The high maximum voltage can support longer strings in suitable applications, potentially reducing the number of parallel strings, cable runs, and combiner requirements.

String sizing must always account for the cold-weather open-circuit voltage of the selected photovoltaic modules. The maximum voltage of the complete string should remain within the inverter’s permitted limit under the lowest expected site temperature. Similarly, the operating voltage should remain within the MPPT range over the expected module temperature range. Proper engineering is therefore essential, but the inverter’s wide voltage window provides a practical foundation for a variety of module technologies and array layouts.

The rated PV input voltage is 600 V. Maximum operating current is specified as 13 A + 13 A on the single-string-per-MPPT configuration and 13 A + 26 A on the configuration with two strings on one tracker. Maximum input short-circuit current is 19.5 A + 19.5 A or 19.5 A + 39 A, depending on the input arrangement. These current specifications should be compared with the module’s operating and short-circuit current during system design.

Each model includes two MPP trackers. Depending on the version and input arrangement, the inverter supports either one string on each MPPT or one string on one tracker and two strings on the other. This is particularly valuable for buildings with multiple roof planes or for arrays that must be divided into separately optimized sections.

The two-tracker configuration is one of the platform’s practical advantages over single-MPPT alternatives. A single tracker may force different roof orientations or shading conditions to operate together, which can reduce the performance of the entire array. Two trackers cannot eliminate every mismatch, but they give designers a more effective method of separating electrically different parts of the photovoltaic field.

Stable Three-Phase Grid Interaction

Modern solar inverters must do more than convert DC power into AC power. They must monitor the public grid, respond to voltage and frequency changes, control reactive power, prevent unintentional islanding, and maintain power quality. This product family is designed for three-phase grid connection with a specified total current harmonic distortion below 3% and DC injection current below 0.5% of rated current.

Low harmonic distortion helps reduce unwanted electrical disturbance in the installation and supports compatibility with sensitive loads. It can also assist compliance with utility interconnection requirements, although the final installation must still be assessed against the applicable local regulations and site conditions.

The adjustable power factor range from 0.8 leading to 0.8 lagging supports installations where the grid operator requires reactive power management. This can be relevant in commercial facilities with large motors, long cable runs, or local grid-support requirements. The available control range gives project engineers more flexibility than a fixed unity-power-factor-only inverter.

The platform supports several recognized grid regulations and standards, including IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, and VDE-AR-N 4105. Certification and compliance requirements can differ by country, utility, and model version. Therefore, installers should confirm the exact certificate and grid-code approval required for a particular project before procurement and commissioning.

Zero-export applications are another important capability. In a zero-export system, locally generated energy is used by on-site loads while export to the public grid is limited or prevented. This can be useful where export is prohibited, where the grid connection has a strict export limit, or where the customer wants to maximize self-consumption. A correctly configured energy meter and control system are required for practical implementation.

The virtual synchronous generator, or VSG, application expands the inverter’s potential role in advanced power systems. VSG functions are intended to emulate selected characteristics of conventional synchronous generators, such as controlled responses that can support grid behavior. The exact function, operating limits, and approval requirements depend on the project configuration and local grid rules.

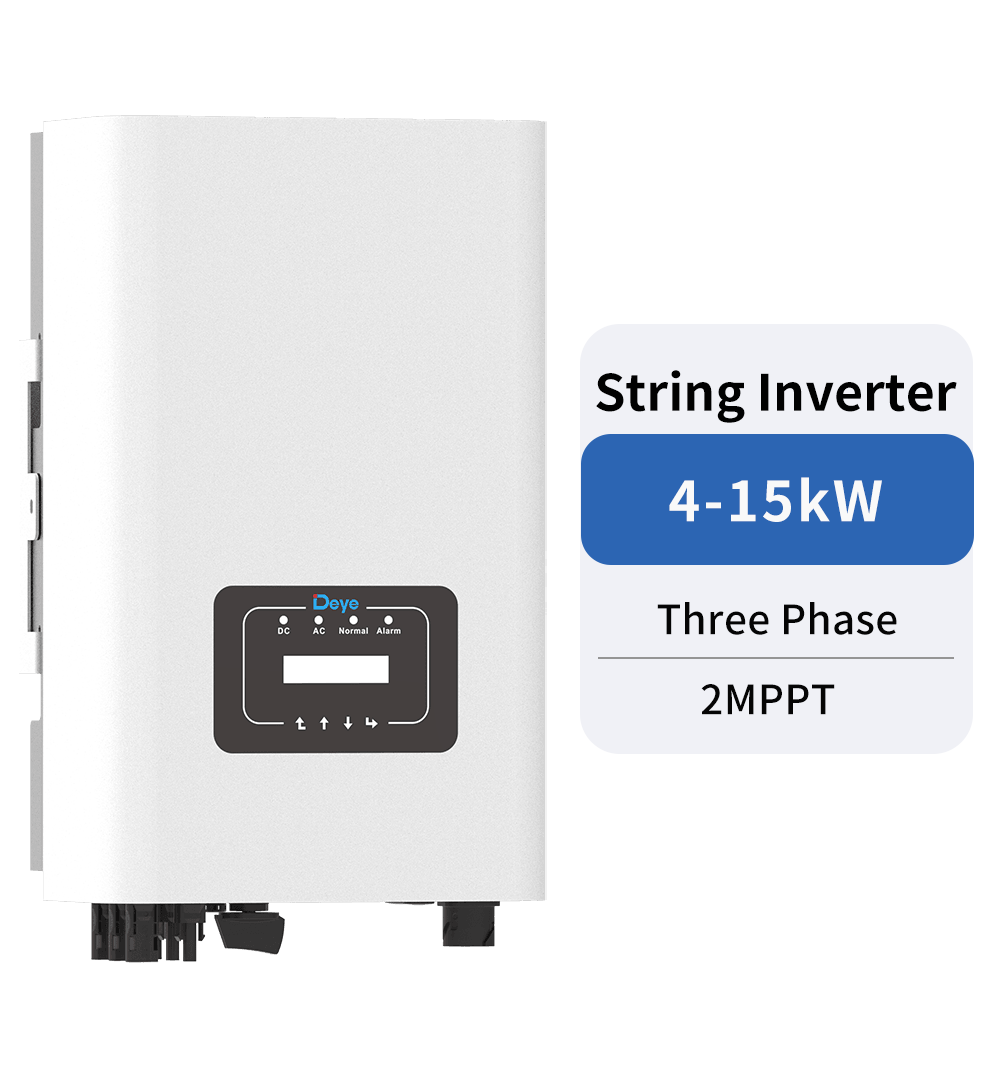

SUN-3/4/5/6/7/8/9/10/12/15K-G06P3-EU-AM2

Protection Designed Into the Inverter

Reliability begins with preventing abnormal conditions from becoming equipment failures. The inverter includes a wide set of protective functions covering the DC input, AC output, insulation, grounding, temperature, grid conditions, residual current, and surge events. This integrated approach reduces the need to rely solely on external protection equipment, although external disconnects, fuses, breakers, and surge devices may still be required by local codes and the system design.

DC polarity reverse connection protection helps protect the inverter when a string is connected with incorrect polarity. During installation, polarity must still be checked with appropriate instruments before energization. Reverse-polarity protection is a safety layer, not a substitute for qualified installation practice.

AC output overcurrent protection, AC output overvoltage protection, and AC short-circuit protection help protect the inverter and connected wiring during abnormal grid or load conditions. Thermal protection monitors operating temperature and can reduce power or shut down the equipment when necessary.

DC terminal insulation impedance monitoring helps identify insulation deterioration or other leakage conditions on the photovoltaic side. DC component monitoring, ground fault current monitoring, and earth fault detection provide additional layers of protection against electrical faults. Residual current detection is also included to help identify unwanted current paths.

Power network monitoring and island protection monitoring are essential for grid-connected operation. If the public grid becomes unavailable, a grid-tied inverter must not continue energizing the disconnected network unless it is specifically designed and approved for an intentional islanded application. Island protection helps the inverter respond appropriately to abnormal grid conditions.

The inverter provides Type II surge protection on both the DC and AC sides. This protection category is widely used in photovoltaic installations, but the actual protection strategy should also consider the building’s lightning protection system, cable lengths, exposure, local standards, and the presence of external surge protective devices.

An arc fault circuit interrupter is available as an option. AFCI functionality can help identify electrical arcing conditions in the PV circuit, which may arise from damaged cables, loose connections, connector incompatibility, or mechanical stress. The option is particularly relevant to projects with specific fire-safety requirements or regulations that call for arc fault detection.

Optional Intelligent Monitoring and Communications

Visibility into system performance is important for both homeowners and professional operators. The product supports optional string intelligent monitoring, which can help compare string behavior and identify abnormal production patterns. Detailed string-level information can assist with fault diagnosis, maintenance planning, and early detection of issues such as shading, connector problems, module damage, or uneven string performance.

The communication interface includes RS485 and RS232. These interfaces are widely used in solar installations for connecting meters, data loggers, control equipment, and monitoring gateways. The inverter can also support optional GPRS, Wi-Fi, Bluetooth, 4G, and LAN monitoring modes, allowing the communication method to be selected according to site conditions and customer preferences.

Wireless communication can simplify data access in locations where running a dedicated network cable is inconvenient. LAN communication may be preferable in facilities with established network infrastructure and strict connectivity policies. Cellular communication can support remote sites without dependable local internet service. Bluetooth can assist with local commissioning and service activities, while RS485 remains useful for robust wired device networks.

Monitoring is not limited to displaying daily energy production. A properly configured platform can track voltage, current, power, temperature, fault codes, historical yield, grid behavior, and operating status. For commercial operators, this information can support preventive maintenance and asset management. For residential users, it can make energy production easier to understand and help confirm that the photovoltaic system is performing as expected.

The communication architecture also supports more advanced energy management. When combined with compatible metering and control devices, the inverter can participate in zero-export strategies, system-level power limitation, and other forms of site energy optimization. The precise functions depend on the installed accessories, firmware, communication topology, and local project requirements.

Outdoor Construction and Thermal Performance

Solar inverters are often installed outdoors, where they encounter heat, cold, humidity, dust, rain, and fluctuating weather conditions. The product has an IP65 ingress protection rating, which indicates a design intended to resist dust ingress and water jets from various directions when correctly installed. The rating does not mean the inverter can be submerged, and installation must follow the specified mounting and clearance instructions.

The operating temperature range extends from -25°C to +60°C, with derating above 45°C. Thermal derating is a normal engineering method used to protect power electronics under high ambient temperatures. The inverter can continue operating in hotter conditions, but its available output may be reduced to manage internal component temperature.

Natural cooling eliminates the need for an external cooling fan. This can provide several practical benefits. There are fewer moving parts, less fan noise, and fewer fan-related maintenance concerns. The specified noise level is below 45 dB, making the inverter suitable for many residential and commercial environments when mounted in an appropriate location.

Natural cooling also requires correct installation. The inverter should not be enclosed in a poorly ventilated cabinet or positioned where hot air accumulates. It should be protected from direct mechanical impact and installed with sufficient clearance for heat dissipation and service access. A shaded, ventilated wall can help reduce thermal stress and improve operating consistency.

The enclosure measures 283 × 463 × 178 millimeters, excluding connectors and brackets, and the listed weight is 11 kilograms. This relatively compact form factor can simplify wall mounting and transportation compared with larger, heavier inverter assemblies. The final mounting structure must still be capable of supporting the equipment under wind, vibration, and long-term environmental loads.

The inverter uses a non-isolated topology. This design approach can contribute to compact dimensions and high efficiency, but it places particular importance on correct grounding, insulation monitoring, module compatibility, and compliance with the electrical requirements of the installation. Qualified professionals should verify the complete DC and AC system design before commissioning.

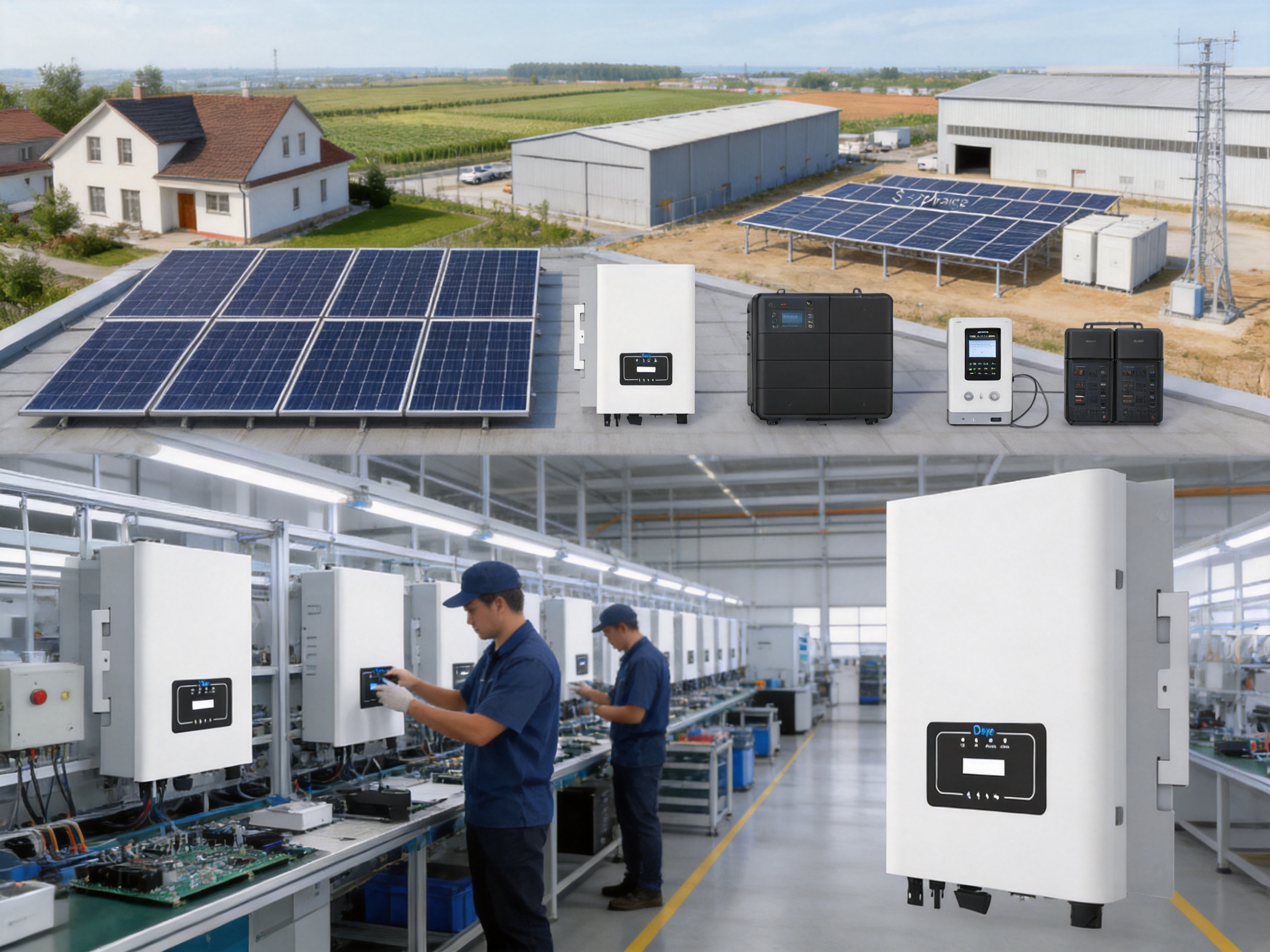

Manufacturing Strength and Product Development Capabilities

The company behind this platform, Ningbo Deye Inverter Technology Co., Ltd., has operated since 2000 and integrates research and development, design, production, sales, and service. This vertically coordinated structure is significant in a power-electronics industry where product quality depends on cooperation between electrical engineering, embedded software, mechanical design, manufacturing, testing, certification, and after-sales support.

The company was listed on the Shanghai Stock Exchange in April 2021, entering a new phase of accelerated development. Its business covers photovoltaic inverters, energy storage systems, dehumidifiers, and HVAC products. This broad technology base gives the organization experience in power conversion, thermal management, motor and compressor control, environmental design, and high-volume appliance manufacturing.

The company reports a product portfolio that includes string inverters from 1 kW to 136 kW, energy storage inverters from 3 kW to 80 kW, and microinverters from 300 W to 2.2 kW. It also develops residential all-in-one energy storage systems, commercial and industrial battery cabinets, modular energy storage systems, photovoltaic-battery-EV charging integrated solutions, utility-scale liquid-cooled energy storage systems, and single-phase off-grid inverters.

This range matters because a manufacturer that develops multiple inverter categories can apply lessons from one product segment to another. Residential products emphasize compactness and user simplicity. Commercial products emphasize monitoring, serviceability, and scalability. Energy storage products add battery control, bidirectional conversion, thermal management, and safety requirements. Experience across these fields can support stronger system-level engineering.

Advanced manufacturing is not limited to assembling circuit boards. It includes controlling component quality, managing production traceability, validating firmware, testing insulation and protection functions, verifying thermal performance, and ensuring that finished products meet electrical and mechanical specifications. A comprehensive manufacturer must connect these activities into a repeatable quality process.

For a three-phase string inverter, manufacturing discipline is especially important because the product contains high-voltage DC circuits, high-current AC output stages, switching devices, magnetic components, capacitors, control boards, communication interfaces, protective devices, and a weather-resistant enclosure. Each subsystem must perform correctly on its own and as part of the complete inverter.

Integrated research and production capabilities can also shorten the feedback loop between field experience and product improvement. If installers report a commissioning difficulty, monitoring issue, or environmental challenge, an organization with in-house engineering and manufacturing resources can investigate the matter more directly. Firmware, hardware, documentation, and production controls can then be coordinated as part of a structured improvement process.

The company’s international presence is another operational strength. Its products are sold in more than 140 countries and regions, requiring attention to different grid regulations, communication environments, installation practices, languages, logistics systems, and service expectations. International deployment encourages the development of product families that can be adapted to varied technical and commercial conditions.

Advantages Compared with Alternative Inverter Approaches

The most appropriate comparison is not simply between brands, but between different technical approaches. A three-phase string inverter with two MPPTs, a 1,100 V maximum input, optional monitoring, and integrated protection can offer a useful balance between capability and simplicity.

Compared with a single-phase inverter, a three-phase unit is naturally suited to buildings with three-phase electrical service. It can distribute generated power across the three phases and support loads such as pumps, compressors, machine tools, ventilation systems, and other commercial equipment. Selecting a three-phase inverter can avoid unnecessary phase-conversion arrangements and better align the photovoltaic system with the site’s existing electrical architecture.

Compared with a single-MPPT inverter, the two-MPPT design provides greater freedom when a roof has multiple orientations or when a project includes different string groups. This may improve energy capture and make the array easier to configure without resorting to additional external equipment.

Compared with a basic inverter without advanced communications, the optional monitoring and communication choices can reduce the difficulty of diagnosing faults. Professional installers can use data to distinguish between an inverter problem, a string problem, a grid problem, and a site-level issue. Better information can reduce unnecessary service visits and shorten repair times.

Compared with fan-cooled products, natural cooling offers a quieter operating profile and removes a common mechanical component. This is helpful in locations where noise is a concern or where maintenance access is limited. However, natural cooling does not remove the need for thermal design; the installation environment and ventilation remain important.

Compared with an inverter that relies heavily on external protection devices, the integrated protection package provides a more complete equipment-level safety foundation. Reverse polarity protection, insulation monitoring, residual current detection, island protection, thermal protection, and surge protection are included within the platform. External protection remains necessary where required by codes or system design, but integrated functions can simplify the overall protection strategy.

Compared with a narrowly sized inverter platform, the 3–15 kW family allows distributors and installers to standardize. A common family can reduce training requirements, simplify inventory, and make replacement planning easier. It also supports a more consistent customer experience across different system sizes.

Applications Across Residential and Commercial Projects

In residential applications, the inverter can support larger three-phase homes with substantial roof area and significant daytime consumption. Households with heat pumps, electric water heating, workshops, pool pumps, or electric vehicle charging may benefit from a three-phase PV system that matches their electrical service.

Small businesses can use the inverter for offices, restaurants, shops, warehouses, and professional facilities. These sites often have daytime electricity demand that aligns well with solar generation. Zero-export functionality may be useful where the business has an export restriction or wishes to prioritize on-site consumption.

Agricultural facilities represent another suitable application. Farms may have pumps, fans, refrigeration equipment, lighting, and processing machinery that operate during daylight hours. A properly engineered three-phase string inverter can support these loads while the optional monitoring function helps operators observe system performance from a distance.

Workshops and light industrial buildings may have roofs with several orientations or sections built at different times. The two MPPTs can help separate arrays with different electrical characteristics. The 15 kW version and other higher-power models can also be combined across larger sites, subject to the project’s distribution design, grid approval, and monitoring requirements.

Multi-inverter commercial systems can benefit from the consistent model family. Several units can be deployed across a roof or group of buildings, with each inverter connected to an electrically appropriate array section. This distributed architecture can reduce the impact of a single equipment outage compared with a design that depends on one central inverter.

In all applications, the inverter must be matched with suitable photovoltaic modules, string lengths, cable sizes, protective devices, voltage limits, earthing arrangements, and grid settings. The product provides a flexible platform, but successful performance depends on the complete system design.

Installation and Commissioning Considerations

Installation should be carried out by trained and authorized personnel familiar with high-voltage DC and three-phase AC systems. Before installation, the project team should verify the local grid code, utility approval requirements, module electrical characteristics, maximum string voltage, current limits, temperature range, mounting conditions, and communication requirements.

The inverter should be installed on a structurally secure surface that can support its weight and withstand environmental loading. Adequate clearance should be maintained around the enclosure to promote heat dissipation and allow access to terminals, communication equipment, and service components. Locations exposed to persistent direct sunlight, standing water, corrosive vapors, or excessive dust should be avoided unless additional protection is provided.

Before connecting the DC side, installers should verify the polarity and open-circuit voltage of every string. They should confirm that the calculated cold-weather voltage remains below the maximum input rating and that the operating range remains within the MPPT window. The maximum current of the module strings should also be checked against the inverter’s operating and short-circuit current ratings.

On the AC side, the three-phase conductors, neutral where required, and protective earth must be connected according to the applicable electrical standard. Cable sizing should consider continuous current, voltage drop, installation method, ambient temperature, and local regulations. AC circuit protection and isolation equipment should be selected for the project’s rated current and fault conditions.

Commissioning should include verification of grounding, insulation resistance, communication connections, meter direction, grid settings, export-control parameters, and monitoring registration. If zero export is required, the system should be tested under changing load conditions to verify that the control system limits export correctly. If optional AFCI or intelligent string monitoring is installed, those functions should also be checked during commissioning.

Documentation is an important part of installation quality. The final system file should include the inverter model, serial number, electrical drawings, string layout, protection settings, grid-code configuration, test results, monitoring credentials, and maintenance instructions. Clear documentation supports future troubleshooting and protects the customer’s long-term investment.

Serviceability and Long-Term Ownership

Solar equipment is expected to operate for many years, so the value of an inverter depends on more than its initial purchase price. Efficiency, monitoring, protection, environmental tolerance, warranty support, documentation, and replacement availability all influence total ownership cost.

The product is specified with a five-year warranty. Warranty terms may vary by market, registration status, installation quality, and regional conditions, so purchasers should confirm the applicable terms before buying. A professional installer should also explain the warranty’s maintenance, commissioning, and service requirements to the system owner.

Monitoring can reduce the time between a fault occurring and the fault being identified. An unexpected drop in production may indicate shading, a disconnected string, an insulation issue, a communication problem, or a grid event. With suitable data, the installer can often perform an initial diagnosis remotely before arranging a site visit.

Preventive maintenance should include visual inspection of the enclosure, cable entries, connectors, mounting points, ventilation clearances, and signs of moisture or overheating. The site operator should also review fault history and production trends. Maintenance intervals depend on the installation environment, but dusty, coastal, agricultural, or industrial locations may require more frequent inspection.

The natural cooling design can reduce fan-related maintenance, but it does not make the inverter maintenance-free. Dust accumulation around the enclosure, poor airflow, loose connections, or environmental corrosion can still reduce performance. Keeping the installation area clean and unobstructed is a simple way to support reliable operation.

System Design Example

Consider a commercial building with a 12 kW three-phase inverter requirement and a roof divided into two sections. One roof plane faces southeast, while the other faces southwest. The installer may assign each roof section to a separate MPPT, provided that string voltage and current remain within the specified limits.

A photovoltaic array with a DC rating of up to 18 kW could be considered for the 12 kW inverter, subject to local regulations, module compatibility, expected clipping, temperature conditions, and the customer’s energy profile. The larger DC array may help produce more energy during mornings, afternoons, and lower-irradiance periods, although the inverter may limit output when available DC power exceeds its AC conversion capability.

If the building has a strict export limit, an appropriate meter and control arrangement can be installed to support zero-export operation. If the owner wants detailed maintenance information, optional string monitoring and a suitable communication gateway can be included. The final design would then combine two MPPT inputs, three-phase AC output, export control, remote monitoring, and integrated protection.

This example demonstrates the product’s flexibility, but it is not a substitute for a site-specific engineering study. The installer must evaluate roof shading, cable routing, local temperature, module data, grid impedance, fault levels, fire regulations, and utility requirements before selecting the final configuration.

Quality, Compliance, and Global Deployment

Solar inverters are safety-critical electrical products. Compliance documentation provides evidence that the design has been assessed against relevant safety, electromagnetic compatibility, and grid-interconnection requirements. The supplied product materials list certificates and declarations associated with IEC 62109-1, IEC 62109-2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50549, VDE-AR-N 4105, Spanish requirements, French requirements, and other regional standards.

IEC 62109 standards address safety requirements for power converters used in photovoltaic systems. IEC 62116 and IEC 61727 relate to utility-interconnected photovoltaic systems and anti-islanding or interface requirements. Regional standards such as VDE-AR-N 4105, G98, G99, CEI 0-21, and EN 50549 address specific national or regional grid connection conditions.

Having a broad certification portfolio can help distributors and engineering companies evaluate the product for different markets. Nevertheless, certificate scope must be checked carefully. The applicable model, firmware version, power class, country setting, and installation category should match the project being built.

Electromagnetic compatibility is also important in modern buildings that contain computers, communication equipment, sensors, medical devices, and industrial controls. The listed IEC/EN 61000-6-1/2/3/4 standards relate to electromagnetic compatibility environments and emission or immunity requirements. Proper cable routing, grounding, shielding, and installation practice remain essential to achieving good field performance.

Why the Platform Is Suitable for Professional Solar Businesses

For a solar distributor, product consistency is a commercial advantage. A platform that spans 3 kW to 15 kW can support multiple customer segments without requiring a completely different supply chain for every project. Common training materials, commissioning procedures, monitoring methods, and service practices can lower operational complexity.

For an installer, the product’s two MPPTs and broad input range provide design flexibility. The compact 11 kg enclosure and natural cooling can simplify handling and mounting. Integrated protection and optional communication functions reduce the need to build every project around a different accessory package.

For an engineering company, the range of grid regulations and available control functions can assist with project approval. Zero-export capability and adjustable power factor are particularly useful when customer requirements extend beyond simple energy production.

For an asset owner, efficiency, monitoring, protection, and a five-year warranty contribute to predictable operation. The ability to observe system performance remotely can improve maintenance planning and help verify that the investment is generating the expected energy.

For a manufacturer, a broad product family demonstrates the ability to manage multiple power classes while preserving common design principles. The company’s reported research, manufacturing, certification, international sales, and service capabilities provide a foundation for continued product development in the photovoltaic and energy storage markets.

Q&A

What type of inverter is this product?

It is a grid-connected three-phase string inverter family for photovoltaic systems. The family includes models with rated AC output from 3 kW to 15 kW and uses two maximum power point trackers.

How many MPPTs does the inverter have?

Each model has two MPPTs. Depending on the input configuration, the inverter supports one string per MPPT or one string on one tracker and two strings on the other.

What is the maximum PV input voltage?

The maximum PV input voltage is 1,100 V. The start-up voltage is 140 V, and the MPPT voltage range is 120–1,000 V. The cold-weather open-circuit voltage of each string must remain within the permitted limit.

What is the maximum efficiency?

Maximum efficiency reaches up to 98.5%. The exact value depends on the selected model, with listed maximum efficiency values from 98.1% to 98.5%.

Can the inverter support oversized PV arrays?

Yes. Maximum PV input power ranges from 4.5 kW for the 3 kW model to 22.5 kW for the 15 kW model. This represents DC-to-AC oversizing of up to 150%, subject to module characteristics, local regulations, and proper system design.

Is zero-export operation available?

Yes. The product information identifies zero-export application support. A compatible meter, control arrangement, correct configuration, and appropriate commissioning procedure are required to limit export reliably.

Does the inverter support reactive power control?

Yes. The specified power factor adjustment range is 0.8 leading to 0.8 lagging. The actual settings must comply with the applicable grid code and utility requirements.

What communication options are available?

The inverter provides RS485 and RS232 interfaces. Optional monitoring modes include GPRS, Wi-Fi, Bluetooth, 4G, and LAN. String intelligent monitoring is also available as an option.

Is the inverter suitable for outdoor installation?

Yes. It has an IP65 enclosure rating and an operating temperature range of -25°C to +60°C, with derating above 45°C. The installation location must still provide suitable ventilation, structural support, protection from flooding, and access for maintenance.

Does the product use a cooling fan?

No. The listed cooling method is natural cooling. This helps reduce operating noise and eliminates fan-related moving components, but the inverter still needs adequate clearance and airflow.

What protective functions are included?

Protection includes DC polarity reverse connection protection, AC overcurrent protection, AC overvoltage protection, AC short-circuit protection, thermal protection, insulation impedance monitoring, DC component monitoring, ground fault current monitoring, power network monitoring, island protection, earth fault detection, residual current detection, and Type II DC and AC surge protection. AFCI is available as an option.

What is the warranty period?

The listed warranty is five years. Buyers should confirm the exact regional warranty conditions, registration requirements, exclusions, and service procedures before purchase.

Who can benefit from this inverter family?

Suitable applications include three-phase homes, small businesses, offices, retail buildings, warehouses, farms, workshops, and light industrial facilities. It is especially useful where the site requires two MPPTs, three-phase output, zero-export capability, remote monitoring, and a compact outdoor enclosure.

Does certification guarantee approval for every country?

No. The product materials list many international and regional standards, but project approval depends on the exact model, certificate scope, firmware, national rules, utility requirements, and installation conditions. The installer or project engineer should verify compliance before commissioning.

Conclusion

The SUN-3/4/5/6/7/8/9/10/12/15K-G06P3-EU-AM2 family is a flexible three-phase string inverter platform for photovoltaic systems from 3 kW to 15 kW. Its combination of two MPPTs, a 1,100 V maximum PV input, up to 98.5% efficiency, DC oversizing capability, three-phase grid compatibility, optional string monitoring, and zero-export support gives it a strong position for varied residential and commercial applications.

Its integrated protection package, IP65 enclosure, natural cooling, broad temperature range, compact dimensions, and multiple communication options further improve practical value. The ability to support different regional grid standards and advanced functions such as adjustable power factor and VSG application makes the platform more adaptable than a basic grid-tie inverter.

The company’s integrated research, design, production, sales, and service structure adds further strength. Its experience across photovoltaic inverters, energy storage, microinverters, HVAC products, and global markets supports a broad technical and manufacturing foundation. For installers and distributors, the consistent 3–15 kW family can simplify product selection and service. For system owners, the platform offers efficient conversion, monitoring potential, and protection for long-term solar operation.

As with any grid-connected power system, final performance depends on correct engineering, qualified installation, approved settings, compatible modules, suitable protection, and regular monitoring. When these requirements are addressed, this three-phase string inverter family can serve as a dependable foundation for efficient and scalable solar generation.

References

Deye. SUN-(3-15)K-G06P3-EU-AM2 Product Datasheet. Technical specification document.

Deye. SUN-(3-12)K-G06P3-EU-AM2 Installation and Operation Instructions. Product installation document.

International Electrotechnical Commission. IEC 62109-1. Safety of Power Converters for Use in Photovoltaic Power Systems.

International Electrotechnical Commission. IEC 62109-2. Particular Requirements for Inverters.

International Electrotechnical Commission. IEC 61727. Photovoltaic Systems: Utility Interface Characteristics.

International Electrotechnical Commission. IEC 62116. Utility-Interconnected Photovoltaic Inverters: Anti-Islanding Measures.

International Electrotechnical Commission. IEC 61683. Photovoltaic Systems: Power Conditioners—Procedure for Measuring Efficiency.

International Electrotechnical Commission. IEC 60068. Environmental Testing Standards.

EN 50549. Requirements for the Connection of Generators in Parallel with Distribution Networks.

VDE-AR-N 4105. Power Generating Plants on the Low-Voltage Grid.
